Запчасти Case 580SN (55.425.AR[02]) - VAR - 747662 - BACKHOE ARM, PILOT CONTROLS, HAMMER, HARNESS (55) - ELECTRICAL SYSTEMS

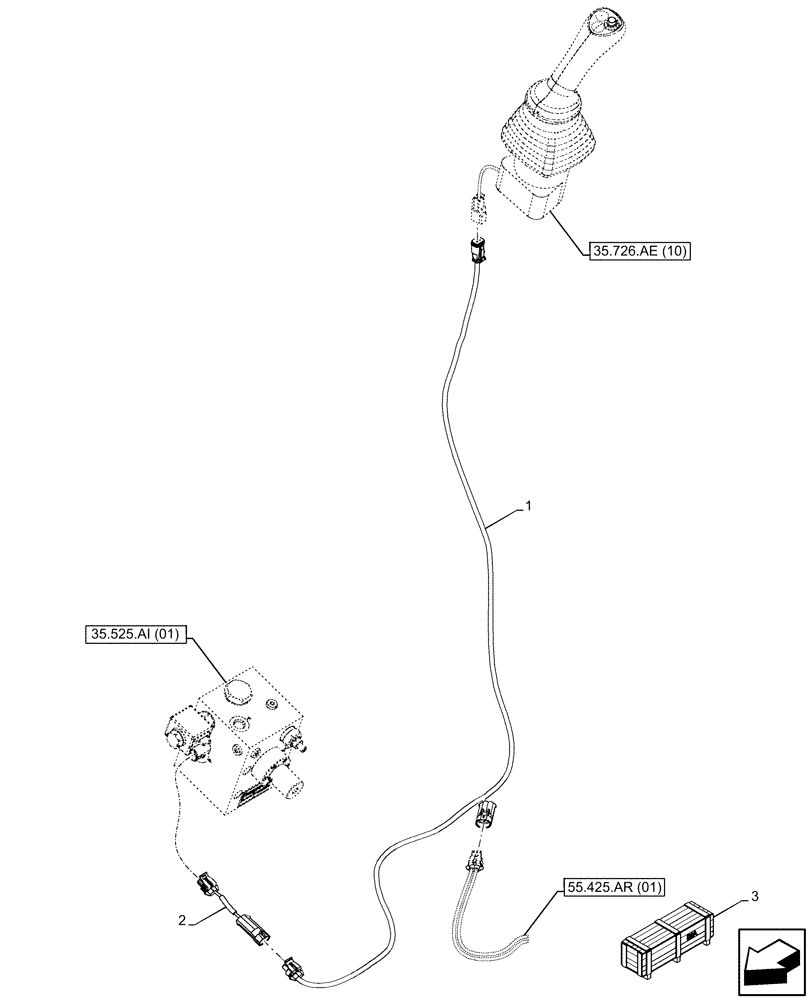

![Схема запчастей Case 580SN - (55.425.AR[02]) - VAR - 747662 - BACKHOE ARM, PILOT CONTROLS, HAMMER, HARNESS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5315521.png)
№
Артикул
Название
Примечание
Количество
1
84292392
WIRE HARNESS
Combo Aux
1шт.
2
84386573
WIRE HARNESS
Jumper
1шт.
3
47358915
CONSTRUCTION DIA
Uni-Dir, Pilot Control, Standard Dipper, Incl 1, 2
1шт.
Valid for 580SN, 580SN WT Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47357827
CONSTRUCTION DIA
Uni-Dir, Pilot Control, Standard Dipper, Incl 1, 2
1шт.
Valid for 590SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47359725
CONSTRUCTION DIA
Uni-Dir, Pilot Control, Extendable Dipper, Incl 1, 2
1шт.
Valid for 580SN, 580SN WT Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47359953
CONSTRUCTION DIA
Uni-Dir, Pilot Control, Extendable Dipper, Incl 1, 2
1шт.
Valid for 590SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 14
