(55.405.AX[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH

Запчасти Case 580SN (55.405.AX[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS

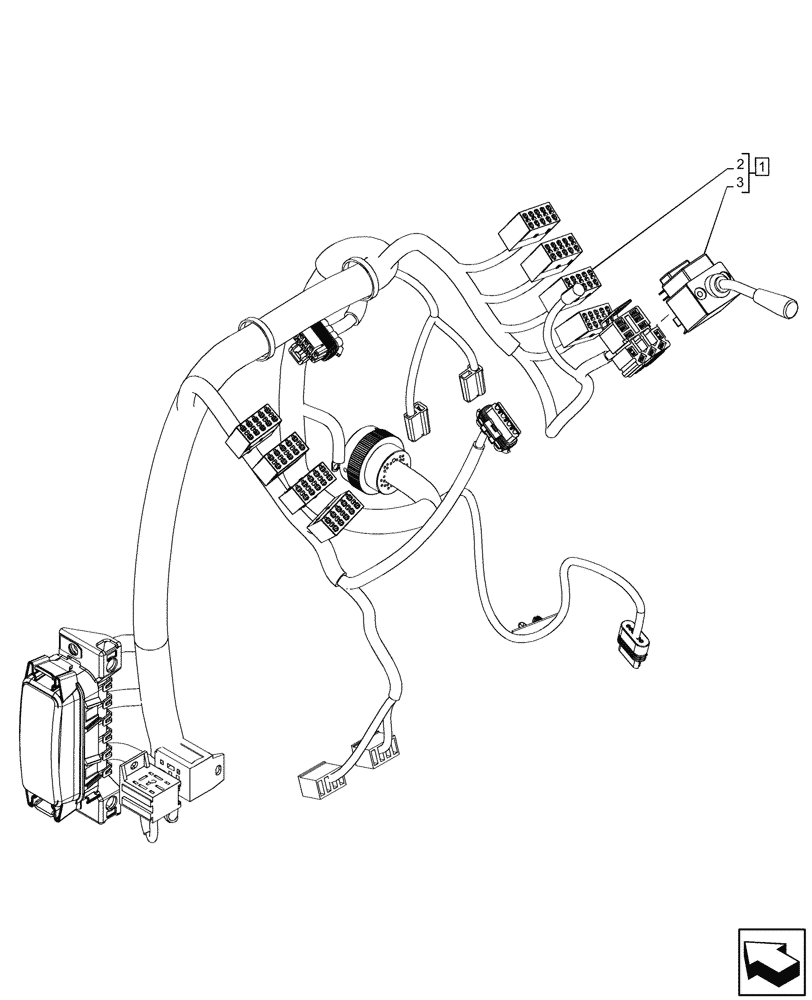

Схема запчастей Case 580SN - (55.405.AX[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47512897

WIRE HARNESS

ASSY, Front Console STD Transmission, Incl 2, 3

1шт.

See Transmission Harness Components also in Figure 55.100.DO (04), 90.108.AE (04)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.
