(55.302.AW[02]) - DUAL BATTERY, NEGATIVE, CABLE

Запчасти Case 580SN (55.302.AW[02]) - DUAL BATTERY, NEGATIVE, CABLE (55) - ELECTRICAL SYSTEMS

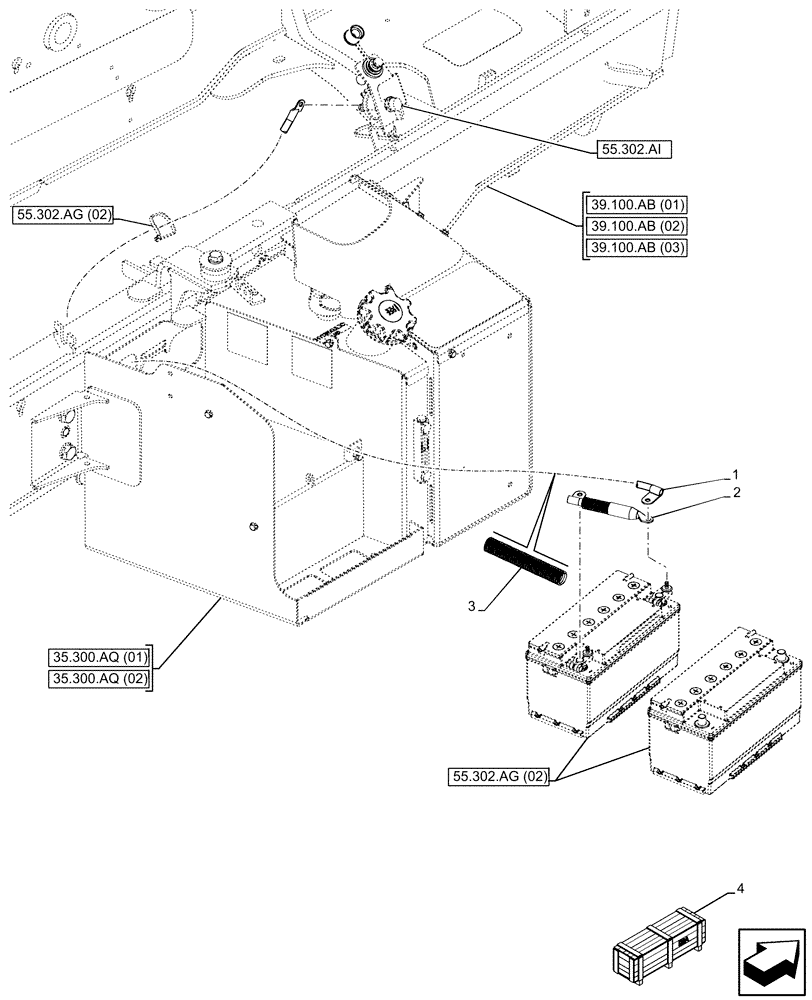

Схема запчастей Case 580SN - (55.302.AW[02]) - DUAL BATTERY, NEGATIVE, CABLE (55) - ELECTRICAL SYSTEMS
2
39.100.ab (03)
55.302.ai
35.300.aq (01)
39.100.ab (01)
1
55.302.ag (02)
35.300.aq (02)
4
3
39.100.ab (02)
55.302.ag (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47575563

NEG BATTERY CABLE,1766mm L

from Battery to Chassis Ground Stud

1шт.

2

47593423

NEG BATTERY CABLE,172.8mm L

1шт.

3

47624327

CONDUIT

Battery Cable

1шт.

4

47629934

CONSTRUCTION DIA

Dual Battery, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
