(55.302.AG[02]) - DUAL BATTERY

Запчасти Case 580SN (55.302.AG[02]) - DUAL BATTERY (55) - ELECTRICAL SYSTEMS

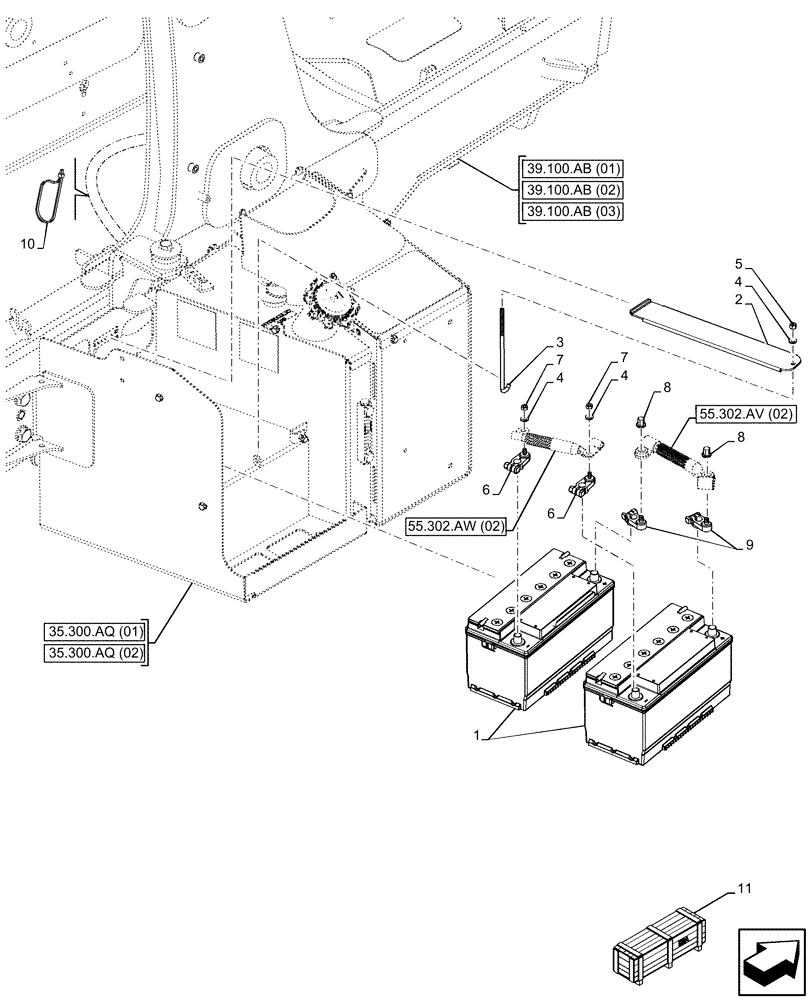

Схема запчастей Case 580SN - (55.302.AG[02]) - DUAL BATTERY (55) - ELECTRICAL SYSTEMS
35.300.aq (02)
10
5
7
35.300.aq (01)
6
4
11
9
39.100.ab (02)
8
2
55.302.aw (02)
4
6
39.100.ab (03)
1
3
7
55.302.av (02)
39.100.ab (01)
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

for North America

2шт.

2

47547379

PLATE

Hold Down Battery

1шт.

3

47547382

THREADED ROD,M8 x 1.2 x 220mm L

Battery Hold Down M8 x 1.2

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

5

412250

NUT,M8 x 1.25, Cl 8

1шт.

6

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

5/16 - 18 Stud

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

Battery Terminal

2шт.

9

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

3/16 -18 Stud

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

11

47629934

CONSTRUCTION DIA

Dual Battery, Incl 4, 6 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
