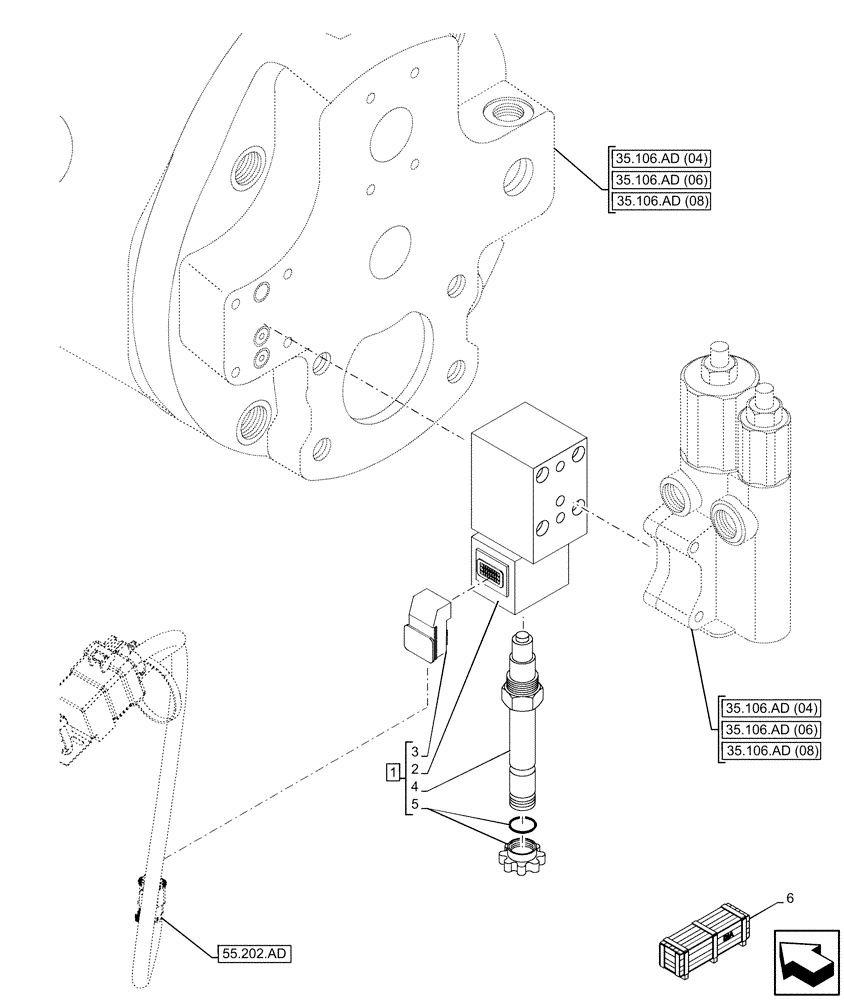

Запчасти Case 580SN (55.202.AG) - COLD START, VALVE (55) - ELECTRICAL SYSTEMS

1

84545281

VALVE

ASSY, Cold Start, Incl 2 - 5

1шт.

To be ordered when code R978051899 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

1

47797269

VALVE

ASSY, Cold Start, Incl 2 - 5

1шт.

To be ordered when code R978059014 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

2

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

3

84594557

COIL

Solenoid Connector Diode

1шт.

To be ordered when code R978051899 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

3

47797268

COIL

Solenoid Connector Diode

1шт.

To be ordered when code R978059014 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

4

84545282

CARTRIDGE

Cold Start Valve

1шт.

To be ordered when code R978051899 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

4

47797267

CARTRIDGE

Cold Start Valve

1шт.

To be ordered when code R978059014 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

6

47825430

CONSTRUCTION DIA

Supplemental Cold Start Aid, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
