Запчасти Case 580SN (55.202.AE) - VAR - 423088 - BLOCK HEATER (55) - ELECTRICAL SYSTEMS

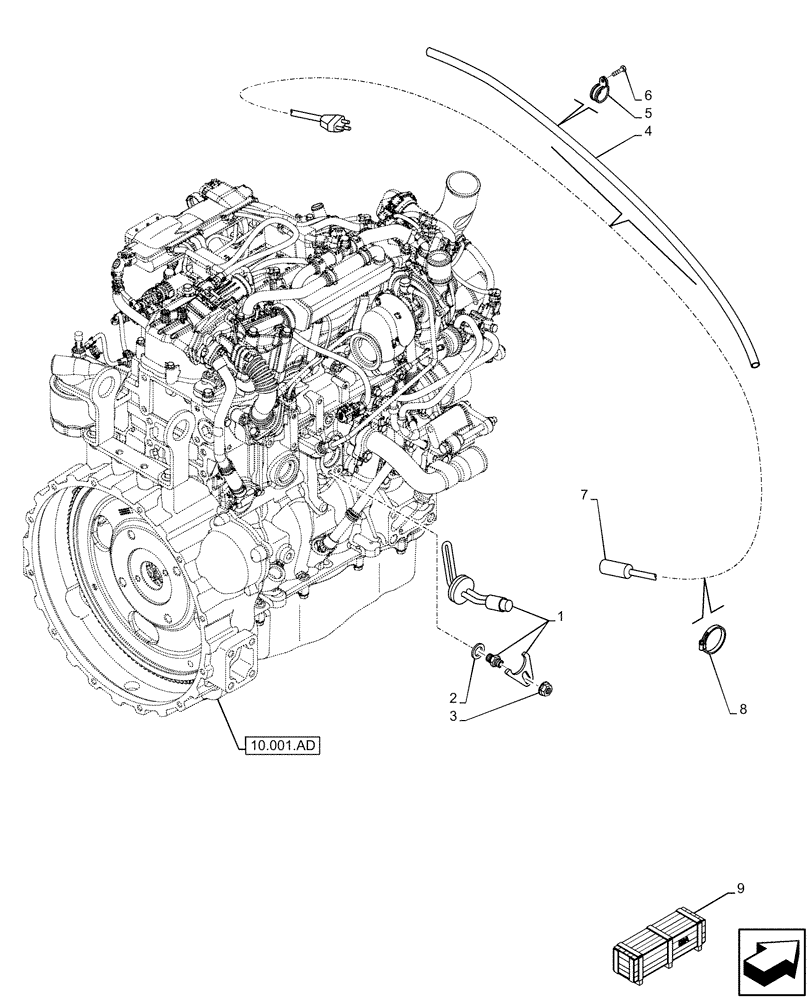

Схема запчастей Case 580SN - (55.202.AE) - VAR - 423088 - BLOCK HEATER (55) - ELECTRICAL SYSTEMS
9
8
7
3
4
10.001.ad
5
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87693857

HEATER,820W - 120V

820W - 120V

1шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

4

84546269

GUARD,10.5mm ID x 1975mm L

10.5mm ID x 14mm OD, 1975mm L

1шт.

5

L302731

CLAMP,19mm D Clamping Pipes

1шт.

6

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

7

87693858

CABLE,Heater, 820W - 120V

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

9

84562926

CONSTRUCTION DIA

Block Heater, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
