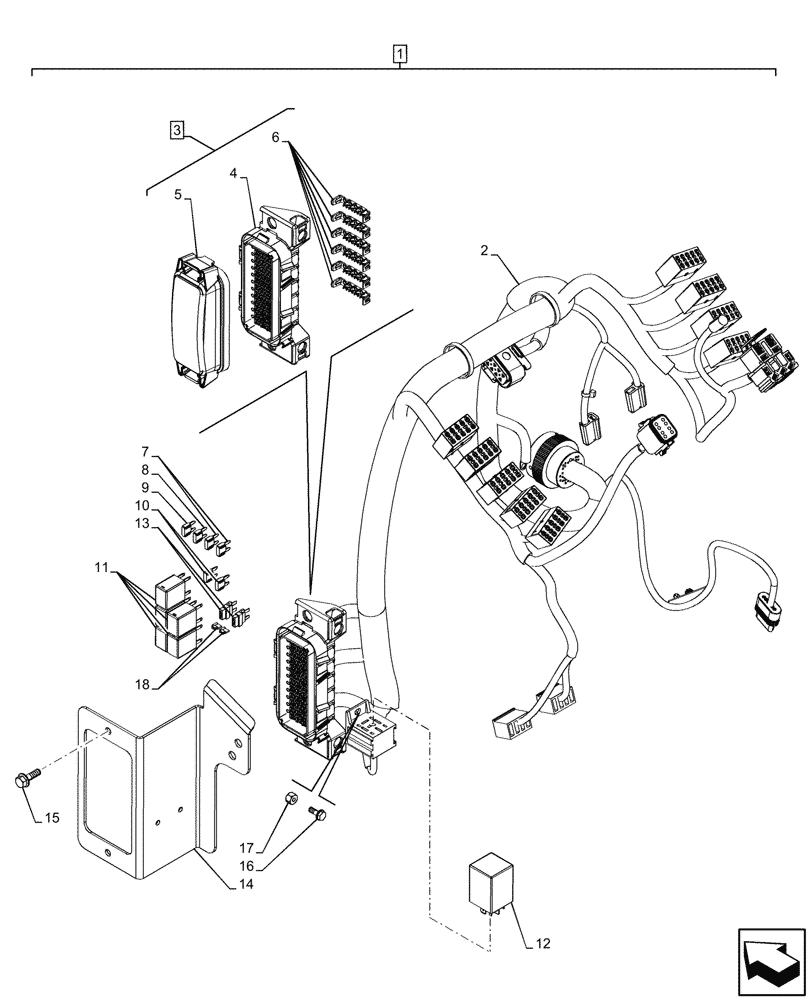

Запчасти Case 580SN (55.100.DO[05]) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, FRONT CONSOLE HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS

1

47512876

WIRE HARNESS

ASSY, Front Console, SPS/PWR Transmission, Incl 2 - 18

1шт.

See Harness Transmission Components also in Figure 55.405.AX (04), 90.108.AE (05)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

84380518

FUSE BOX

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

5

84404932

COVER

Cover

1шт.

6

84342278

CONNECTING BLOCK

6шт.

7

121413A1

FUSE,15A, Mini, Blue

2шт.

8

121411A1

FUSE,7.5A, Mini, Brown

1шт.

9

121412A1

FUSE,10A, Mini, Red

1шт.

10

121410A1

FUSE,5A, Mini, Tan

2шт.

11

87655334

RELAY,12V, 35A, Micro

5шт.

12

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

13

416569A1

DIODE ELEMENT,7300W

Bussmann 280

2шт.

14

84238043

BRACKET

Front Harness

1шт.

15

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

16

87301687

SCREW,HWH, #10 - 32 x 1/2"

1шт.

17

231-24409

NUT,#10-32

1шт.

18

84292399

KEY

2шт.
