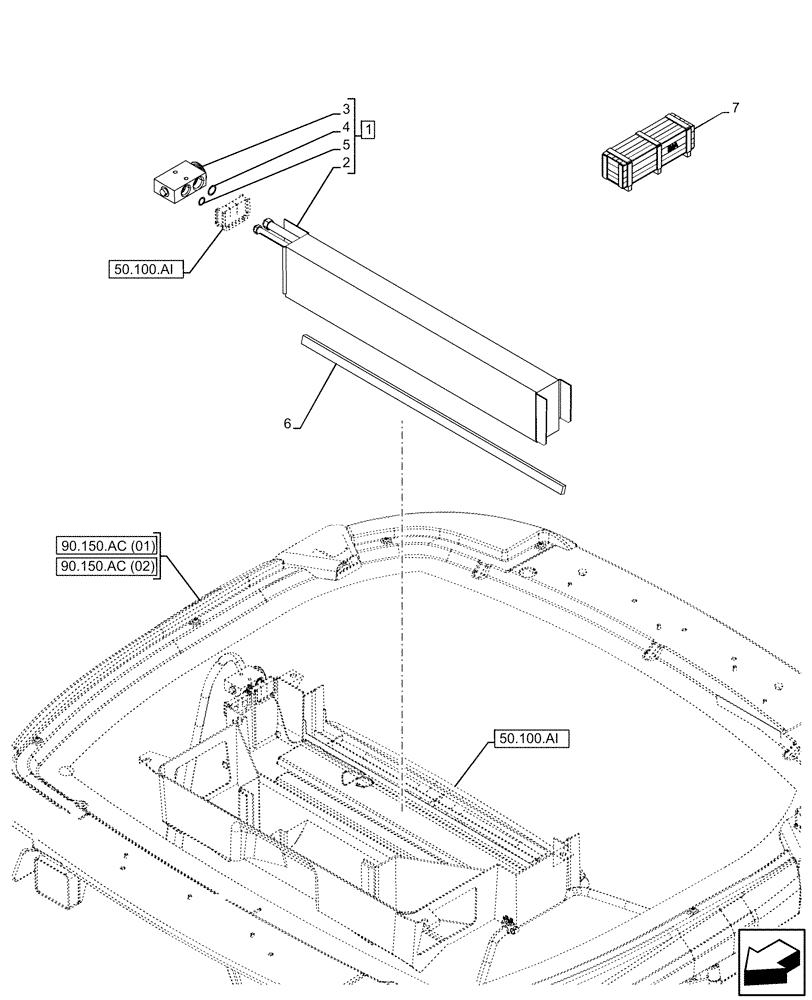

Запчасти Case 580SN (50.200.CA) - VAR - 747853, 747855 - AIR CONDITIONING, EVAPORATOR (50) - CAB CLIMATE CONTROL

1

363832A5

EVAPORATOR

ASSY, Incl 2 - 5

1шт.

2

360263A4

EVAPORATOR

1шт.

3

386535A1

VALVE

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

6

83822C1

TAPE

3шт.

7

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
