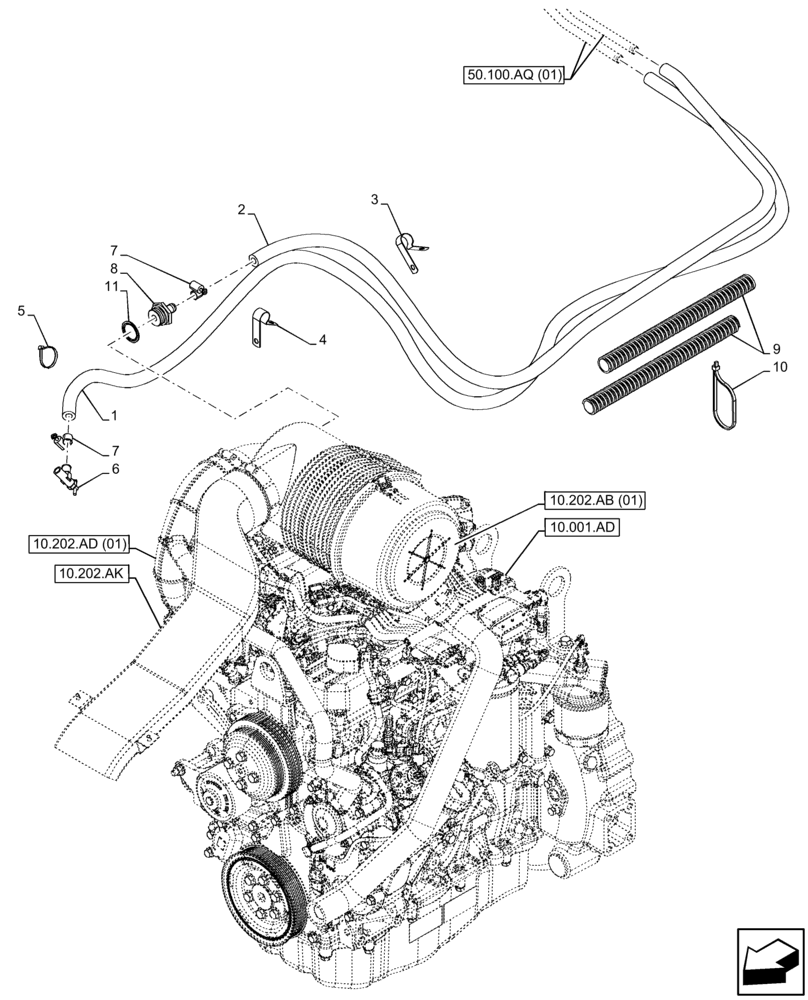

Запчасти Case 580SN (50.100.AQ[02]) - VAR - 747853, 747854, 747855 - CAB, HEATER, HOSE (50) - CAB CLIMATE CONTROL

1

47595192

HOSE,15.9mm ID x 2150mm L

15.9mm ID x 2150mm L, Heater, Return

1шт.

2

47595193

HOSE,15.9mm ID x 1500mm L

15.9mm ID x 1500mm L, Heater, Supply

1шт.

3

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.

4

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

6

87686604

SHUT-OFF VALVE

1шт.

6

A16764

VALVE

Water Shut-Off

1шт.

7

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

8

84498259

STEM

1шт.

9

D132982

PADDLE,26.87mm ID x 400mm L

7шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

11

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

1шт.
