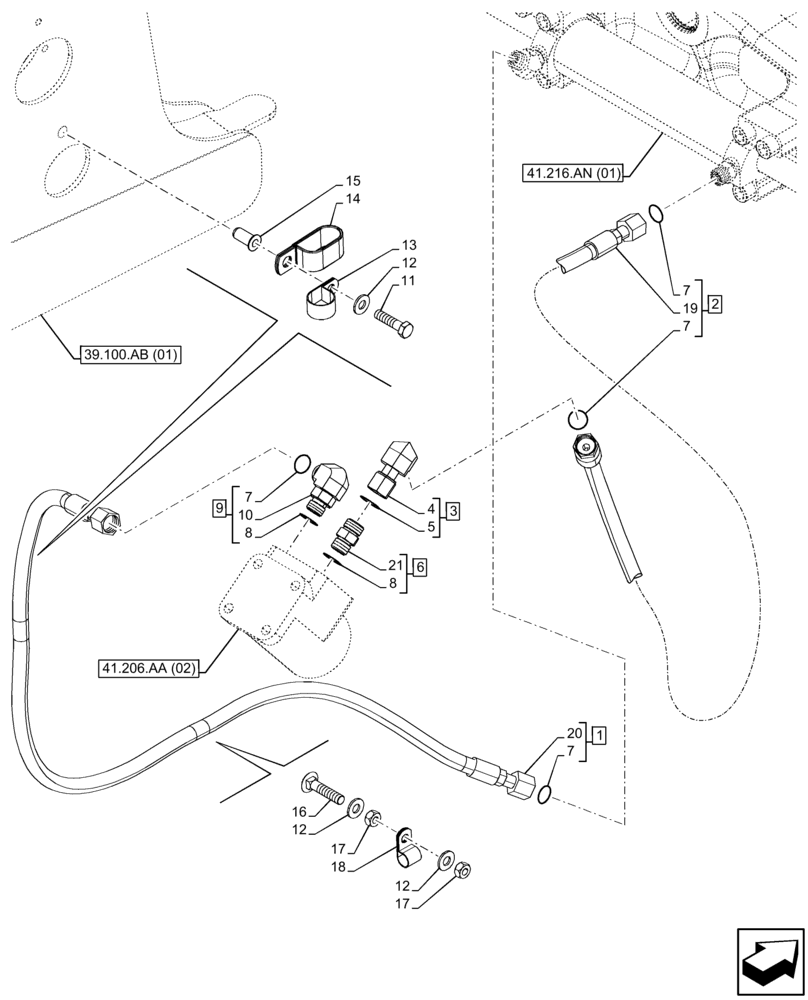

Запчасти Case 580SN (41.216.AV) - STEERING CYLINDER HYD. LINE (41) - STEERING

1

84554256

HYDRAULIC HOSE,10mm ID x 1405mm L

10mm ID x 1405mm L, ASSY, LH Steering, Incl 7 (Qty 1), 20

1шт.

2

47566181

HYDRAULIC HOSE,9.5mm ID x 1800mm L

9.552mm ID x 1800mm L, ASSY, RH Steering, Incl 7 (Qty 2), 19

1шт.

3

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 8 (Qty 1), 21

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

11

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

13

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

15

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

16

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

19

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

20

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.
