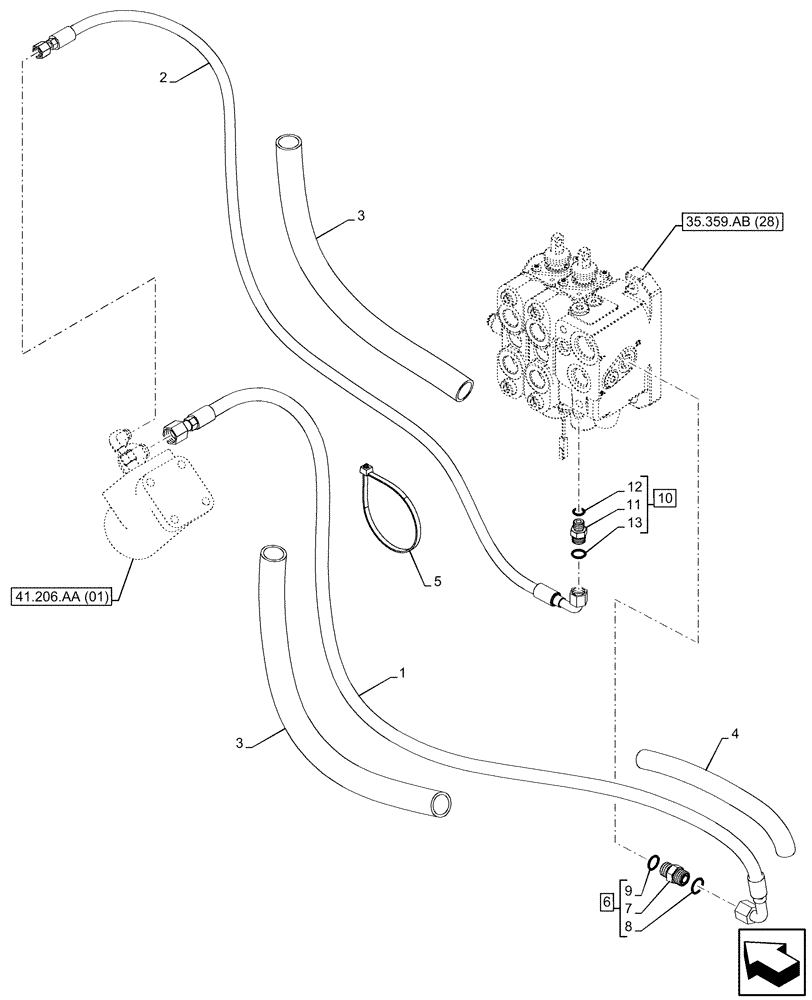

Запчасти Case 580SN (41.200.BZ[03]) - CONTROL VALVE, STEERING VALVE, PILOT LINE (41) - STEERING

1

84358584

HOSE ASSY.,12.5mm ID x 1617mm L

Steering LS Pilot

1шт.

2

84284694

HOSE ASSY.,6.3mm ID x 1446mm L

Steering Pressure

1шт.

3

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

4

84336430

HOSE PROTECTION

19.1mm ID x 305mm L

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

6

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
