Запчасти Case 580SN (39.140.AM[01]) - VAR - 747580 - COUNTERWEIGHT, 700 LBS, FRONT (39) - FRAMES AND BALLASTING

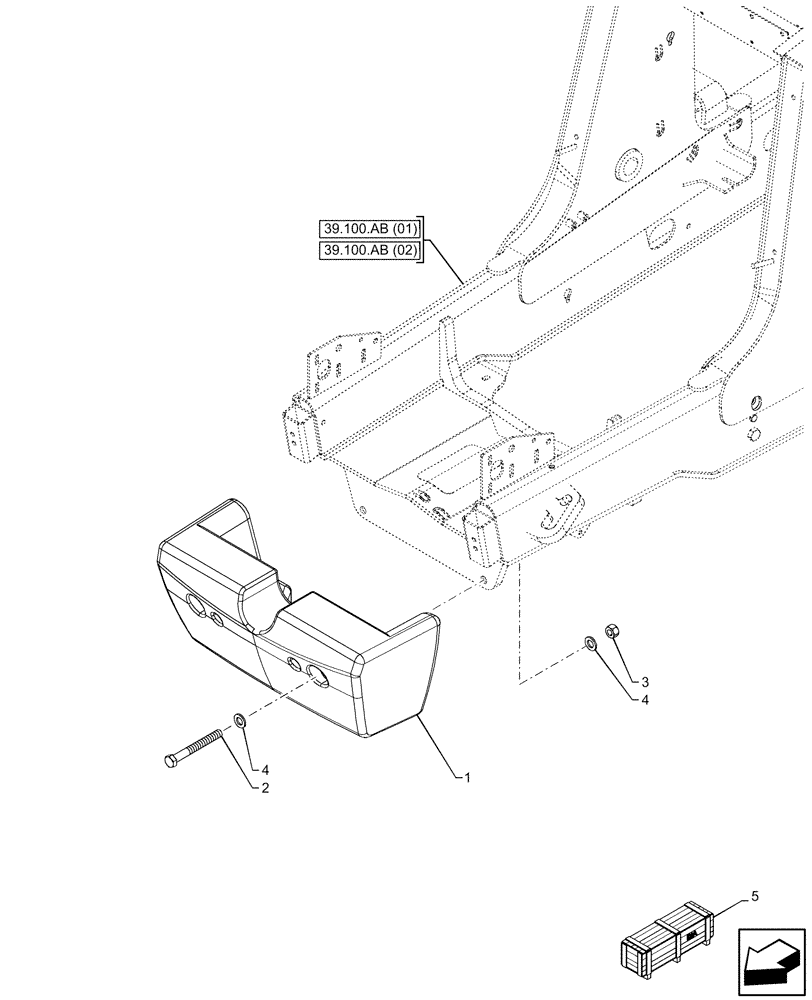

Схема запчастей Case 580SN - (39.140.AM[01]) - VAR - 747580 - COUNTERWEIGHT, 700 LBS, FRONT (39) - FRAMES AND BALLASTING
3
5
2
1
39.100.ab (02)
39.100.ab (01)
4
4

Артикул

Название

Примечание

Количество

1

84254687

COUNTERWEIGHT,310 Kg / 700 Lb

Front, 700 Lb

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

84275784

CONSTRUCTION DIA

Standard Counterweught, Incl 1 - 4

1шт.

Valid for 580N, 580SN, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
