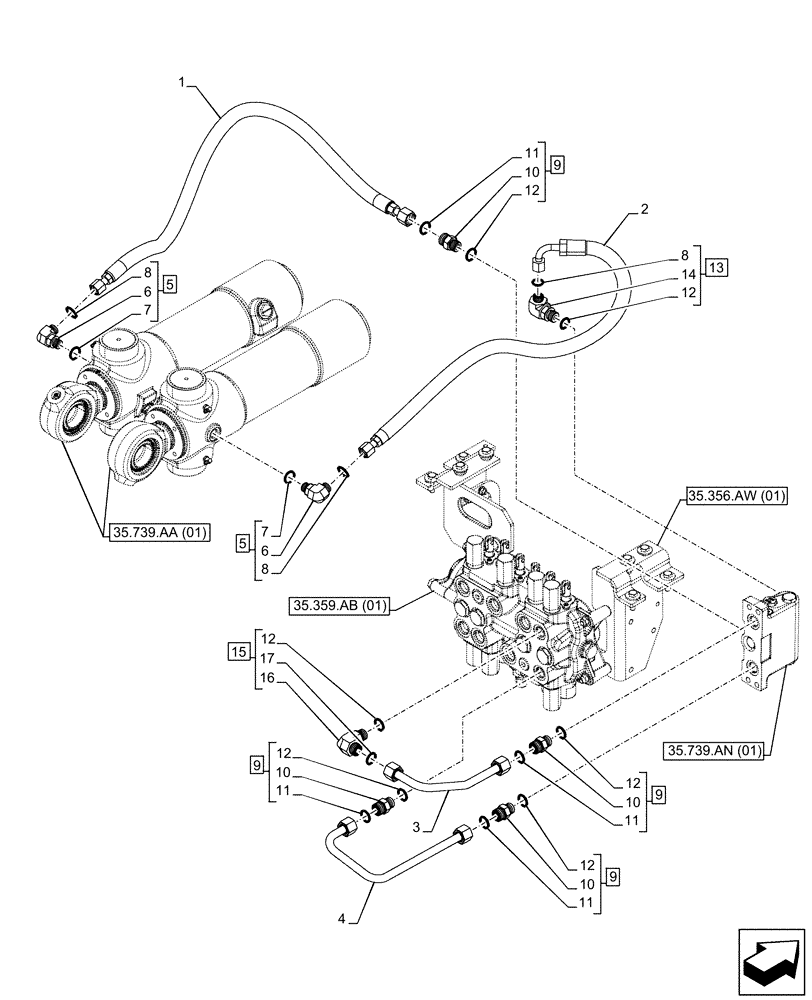

Запчасти Case 580SN (35.739.AE[02]) - VAR - 742369 - BOOM SWING, MECHANICAL, CONTROLS, DAMPING VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

84285086

HOSE,12.5mm ID x 1100mm L

Dampen Valve Lower Port SWI

1шт.

2

84254941

HYDRAULIC HOSE,12.5mm ID x 935mm L

Dampen Valve Upper Port TO

1шт.

3

84254943

HYD TUBE

Swing Dampen Top Port

1шт.

4

84254944

HYD TUBE

Swing Dampen Bottom Port

1шт.

5

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 12 (Qty 1)

4шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

4шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

4шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

13

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

ASSY, Incl 8 (Qty 1), 12 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 13

1шт.

15

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 12 (Qty 1), 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 15

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
