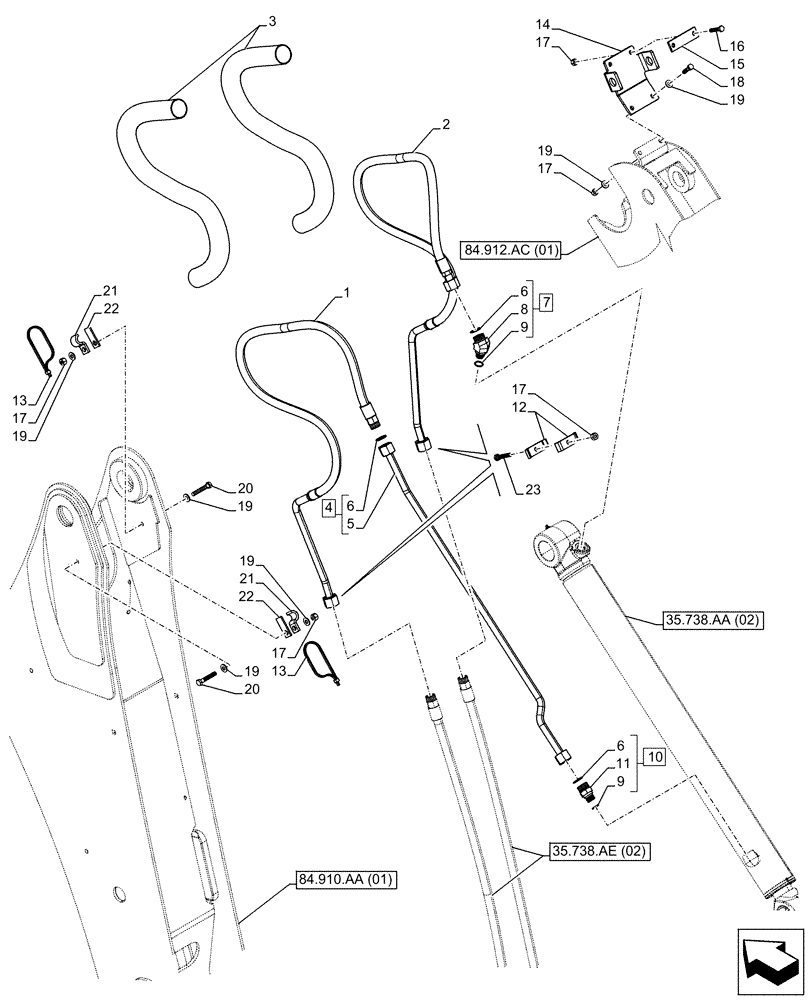

Запчасти Case 580SN (35.738.AE[04]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER LINES, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS

1

47818089

HYDRAULIC HOSE,16mm ID, 1458mm L, SAE100R12

Bucket Cylinder Rod

1шт.

For Severe Cold Weather

1шт.

2

47818088

HYDRAULIC HOSE,16mm ID, 1479mm L, SAE100R12

Bucket Cylinder Head

1шт.

For Severe Cold Weather

1шт.

3

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

4

84305540

TUBE

ASSY, Bucket Cylinder Rod, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

7

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

ASSY, Incl 6 (Qty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

ASSY, Incl 6 (Qty 1), 9, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

D143846

CLAMP

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

14

84359870

BRACKET

1шт.

15

101479A1

SUPPORT

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

412141

NUT,M10 x 1.5, Cl 8

7шт.

18

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

20

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

84259030

SPACER

2шт.

23

120071

BOLT,Hex, M10 x 65, 8.8

1шт.
