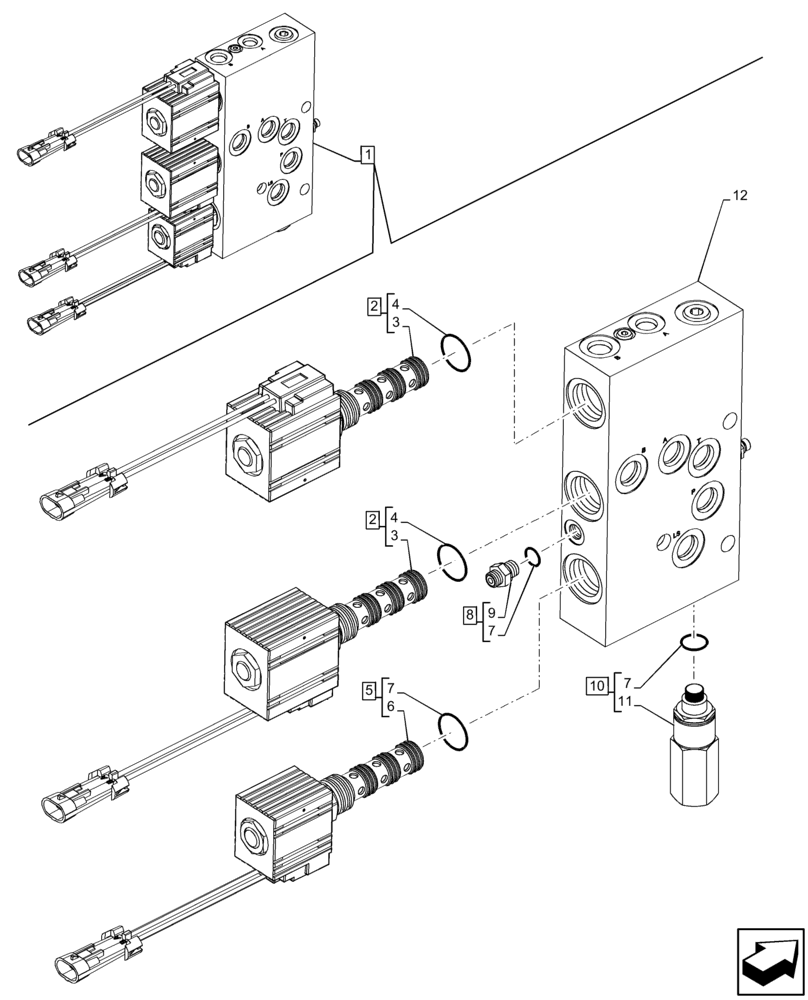

Запчасти Case 580SN (35.734.AC[04]) - QUICK COUPLER VALVE W/ LOADER AND BACKHOE HYDRAULIC COUPLER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87435910

SOLENOID VALVE

ASSY, Hydraulic Coupler, Double, Incl 2 - 12

1шт.

2

87438021

SOLENOID VALVE

ASSY, with Coil, Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

2шт.

4

87438024

SEAL KIT

4-Way Solenoid

2шт.

5

87438025

SOLENOID VALVE

ASSY, with Coil, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

1шт.

7

87438028

SEAL KIT

2-Way Solenoid

3шт.

8

87438029

VALVE, CHECK

ASSY, Incl 7, 9

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

10

84200896

VALVE PRESSURE RELIE

ASSY, TLB Coupler, Incl 7, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
