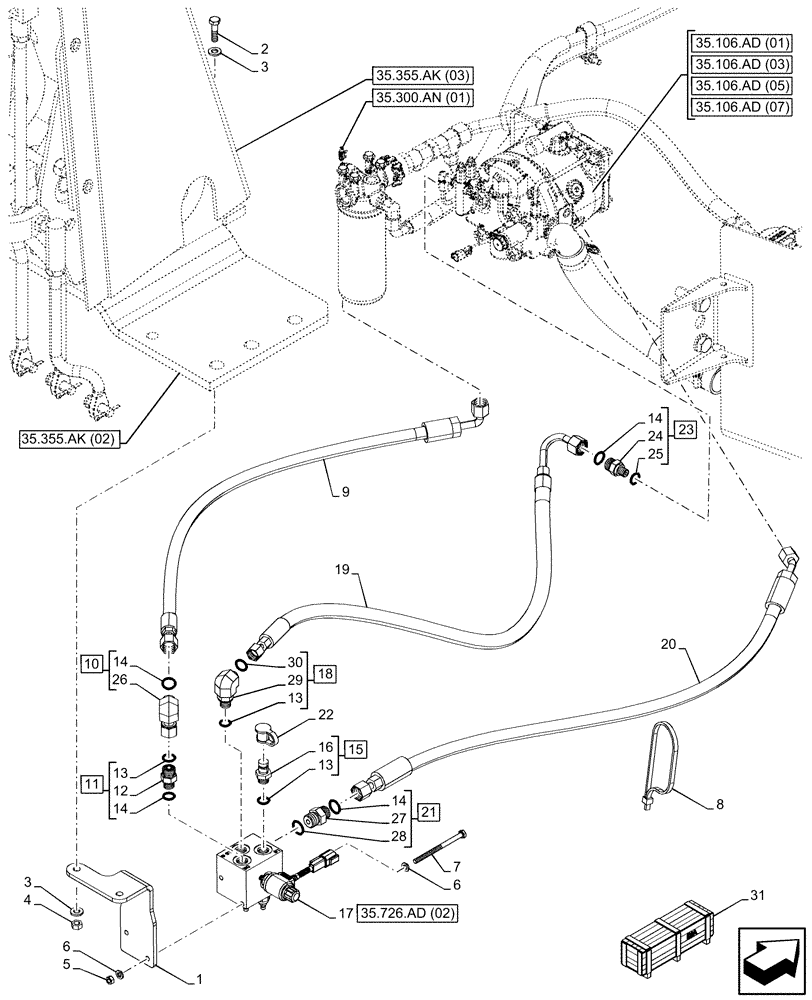

Запчасти Case 580SN (35.726.AD[01]) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84483241

BRACKET

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

6

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

7

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

84483473

HOSE,10mm ID x 1065mm L, SAE 100R6

1066mm L, Heavy Lift Return

1шт.

10

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 14 (Qty 1), 26

1шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 12, 13 (Qty 1),14 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

15

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 13 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Coupler, Incl in 15

1шт.

17

84527714

CONTROL VALVE

ASSY, Heavy Lift

1шт.

18

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 13 (Qty 1), 29, 30

1шт.

19

84540599

HOSE,6.3mm ID x 880mm L, SAE 100R16 Type S

880mm L, Heavy Lift

1шт.

20

84483235

HOSE,10mm ID x 842mm L, SAE 100R16 Type S

842mm L, Heavy Lift

1шт.

21

87672176

HYD CONNECTOR

ASSY, Incl 14 (Qty 1), 27, 28

1шт.

22

H434163

DUST CAP

1шт.

23

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

ASSY, Incl 14 (Qty 1), 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 18

1шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

84561133

CONSTRUCTION DIA

Power Lift, Incl 1 - 26

1шт.

Valid for 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
