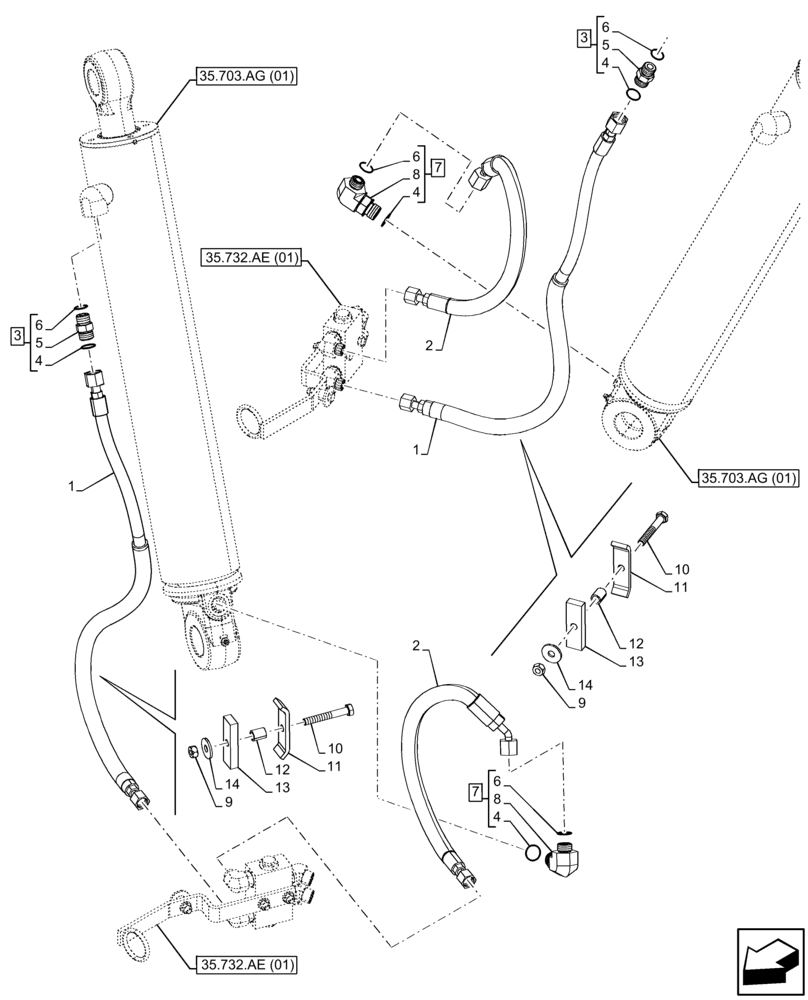

Запчасти Case 580SN (35.703.AD) - STABILIZER CYLINDER, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

84257155

HYDRAULIC HOSE,9.53mm ID x 813mm L, SAE 100R16

Check Valve to Head Stabilizer Cylinder

2шт.

2

84280780

HOSE ASSY.,9.53mm ID x 507mm L, SAE 100R16

Check Valve to Head Stabilizer Cylinder

2шт.

3

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 4 (Qty 1), 6 (Qty 1), 8 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

11

87420673

HOSE CLAMP

2шт.

12

87439665

SPACER,11.30mm ID x 15.88mm OD x 19.50mm L

2шт.

13

87420672

SPACER,25mm W x 80mm L x 12mm Thk

2шт.

14

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.
