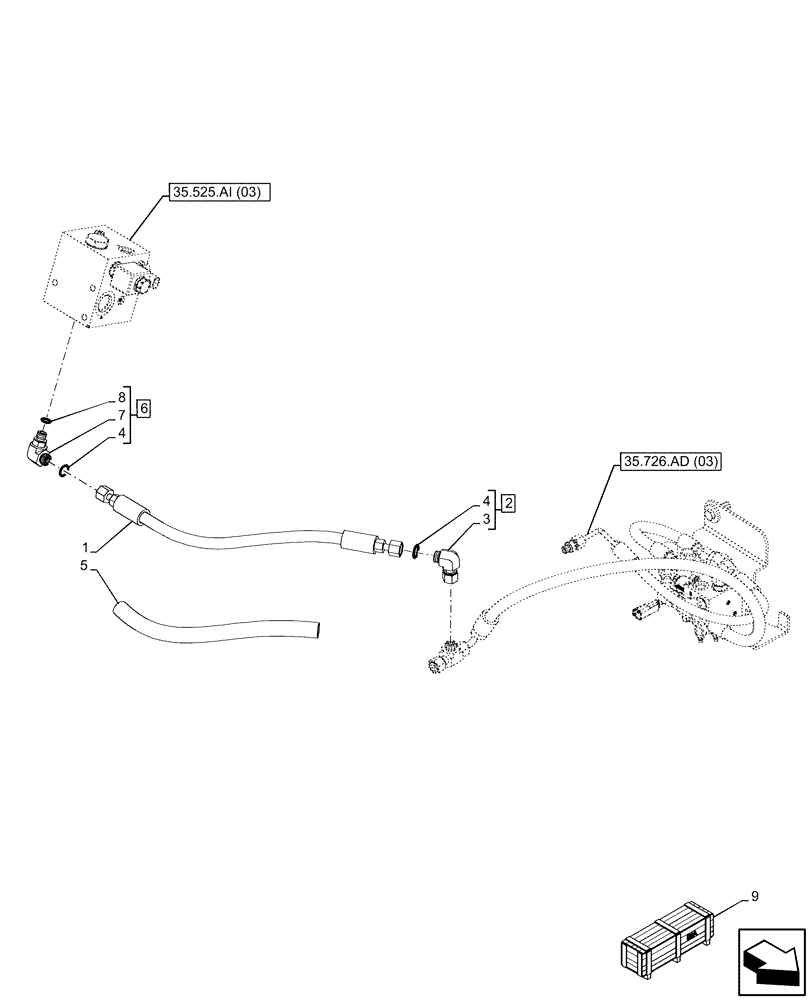

Запчасти Case 580SN (35.525.AA[18]) - VAR - 747662, 423084 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84573738

HOSE,10mm ID x 560mm L

10mm ID x 560mm L

1шт.

2

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY , Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY , Incl 4 (Qty 1), 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

47358915

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Standard Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47357827

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Standard Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47359725

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47359953

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 4, 6 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 4, 6 - 8

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
