(35.359.AE[16]) - LOADER, CONTROL VALVE LINE

Запчасти Case 580SN (35.359.AE[16]) - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

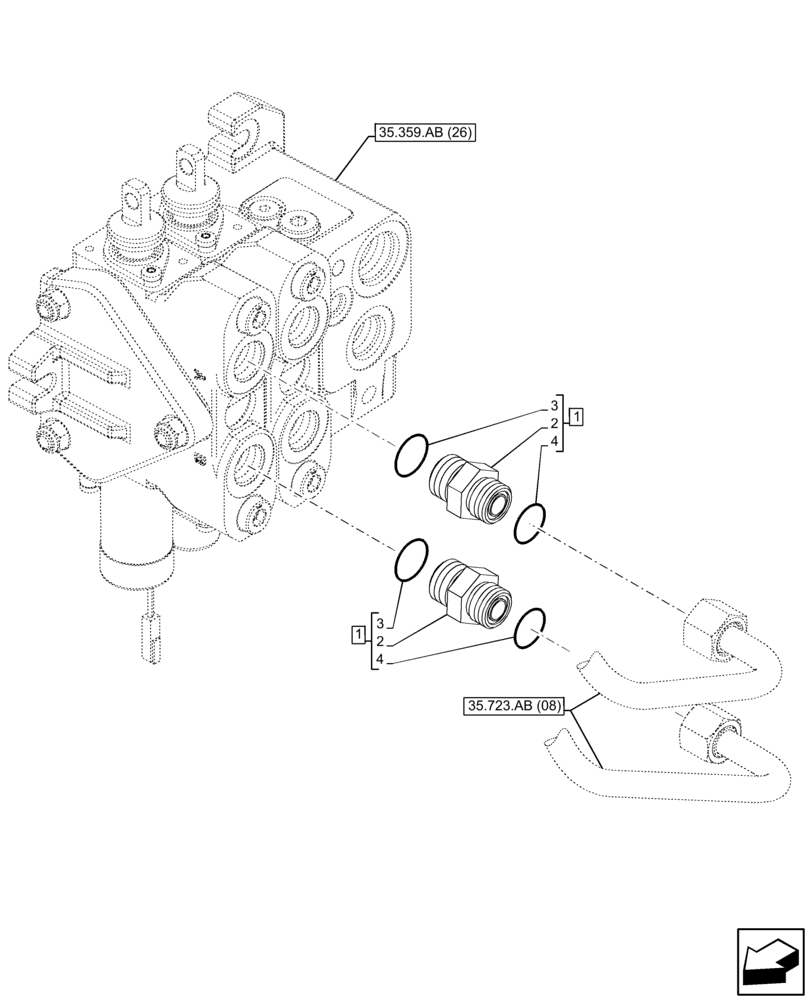

Схема запчастей Case 580SN - (35.359.AE[16]) - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.723.ab (08)
4
4
3
35.359.ab (26)
1
3
1
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
