(35.359.AE[11]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, FILTER

Запчасти Case 580SN (35.359.AE[11]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, FILTER (35) - HYDRAULIC SYSTEMS

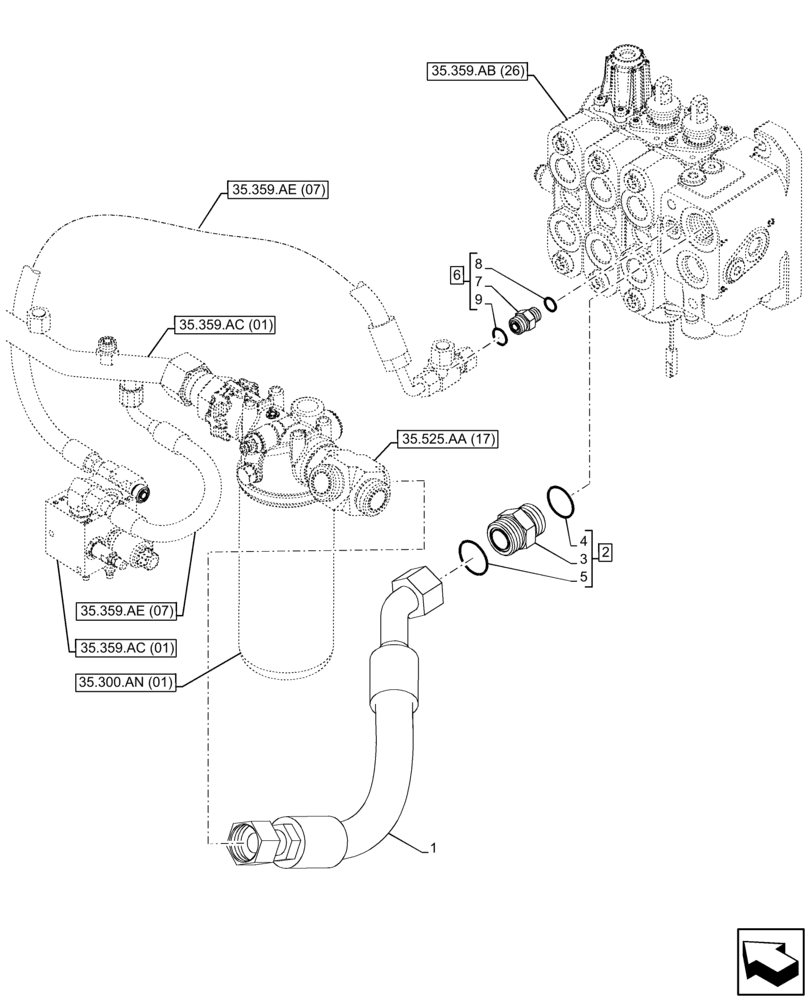

Схема запчастей Case 580SN - (35.359.AE[11]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, FILTER (35) - HYDRAULIC SYSTEMS
35.359.ae (07)
35.359.ac (01)
1
3
35.359.ae (07)
35.300.an (01)
35.525.aa (17)
5
4
6
35.359.ac (01)
7
9
2
35.359.ab (26)
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84523971

HYDRAULIC HOSE,25mm ID x 505mm L

from Valve to Filter

1шт.

2

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 9
