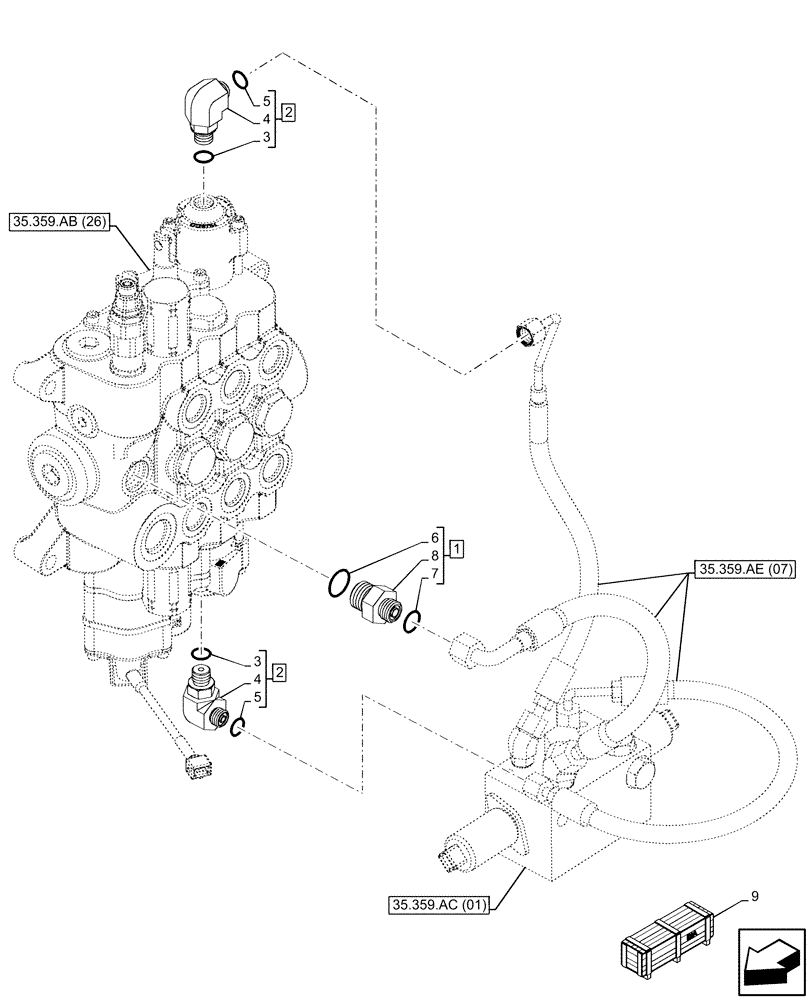

Запчасти Case 580SN (35.359.AE[05]) - VAR - 747776 - LOADER, AUXILIARY CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

84139327

HYD CONNECTOR

ASSY, Incl 6 - 8

1шт.

2

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

9

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1 - 4, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
