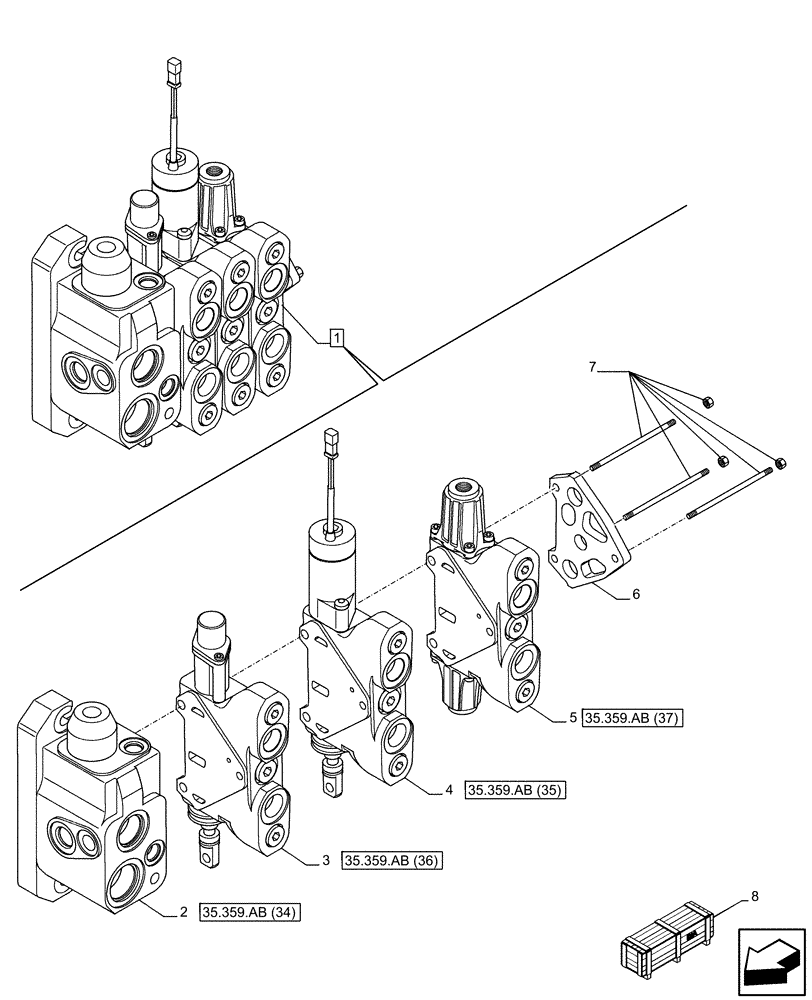

Запчасти Case 580SN (35.359.AB[33]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL (35) - HYDRAULIC SYSTEMS

1

84219974

VALVE

Loader 3 Spool, ASSY, Incl 2 - 7

1шт.

1

84219974R

REMAN-HYD VALVE

Reman Loader 3 Spool, ASSY, Incl 2 - 7

1шт.

1

84219974C

CORE-VALVE HYD

1шт.

2

87751123

HYD VALVE SECTION

Inlet, ASSY

1шт.

3

84295100

HYD VALVE SECTION

Loader Bucket, ASSY

1шт.

4

84295097

HYD VALVE SECTION

Loader Lift, ASSY

1шт.

4

84295097R

REMAN-HYD VALVE

Reman Loader Lift, ASSY

1шт.

4

84295097C

CORE-VALVE HYD

Core Return Number

1шт.

5

84295102

HYD VALVE SECTION

Loader Clam, ASSY

1шт.

6

87330847

OUTLET

1шт.

7

85825474

THREADED TIE-ROD,M10 x 193mm L

1шт.

8

84484676

SERVICE KIT

3 Spool Valve Section, Tie Rods, Incl 5, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
