(35.359.AB[32]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL

Запчасти Case 580SN (35.359.AB[32]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL (35) - HYDRAULIC SYSTEMS

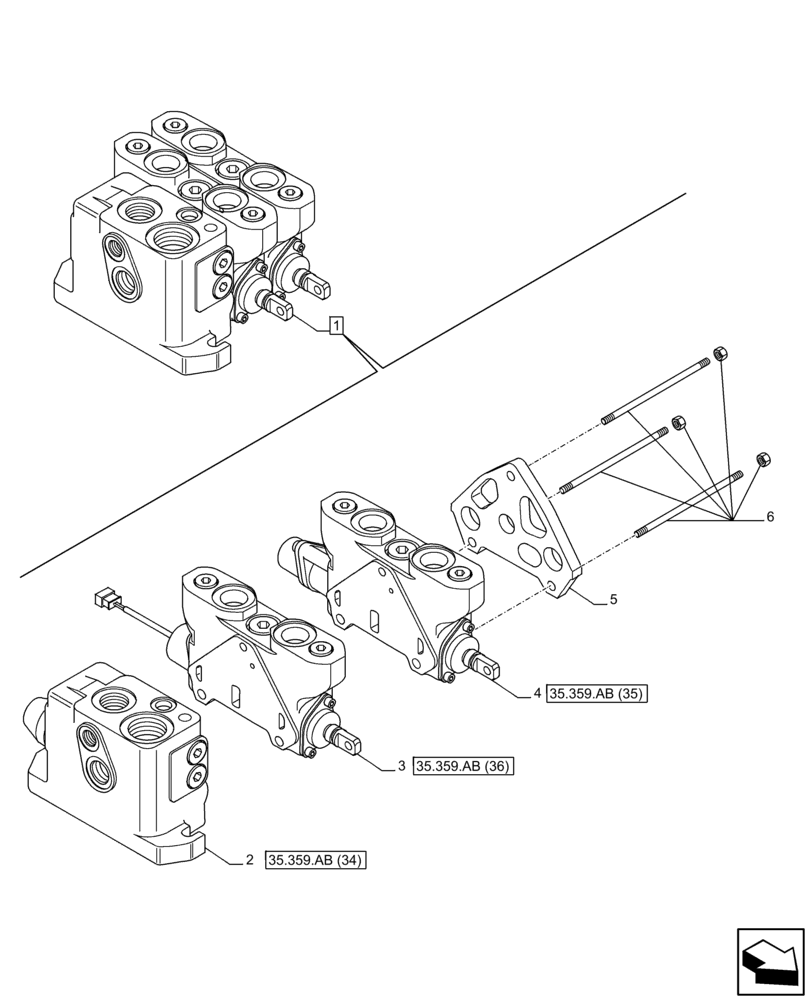

Схема запчастей Case 580SN - (35.359.AB[32]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL (35) - HYDRAULIC SYSTEMS
6
3
4
35.359.ab (35)
35.359.ab (36)
35.359.ab (34)
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219975

VALVE

Loader 2 Spool, ASSY, Incl 2 - 6

1шт.

2

87751123

HYD VALVE SECTION

Inlet, ASSY

1шт.

3

84295100

HYD VALVE SECTION

Loader Bucket, ASSY

1шт.

4

84295097

HYD VALVE SECTION

Loader Lift, ASSY

1шт.

4

84295097R

REMAN-HYD VALVE

Reman Loader Lift, ASSY

1шт.

4

84295097C

CORE-VALVE HYD

Core Return Number

1шт.

5

87330847

OUTLET

1шт.

6

85825475

THREADED TIE-ROD,M10 x 145mm L

1шт.

Выбрано товаров: 8
