(35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING

Запчасти Case 580SN (35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

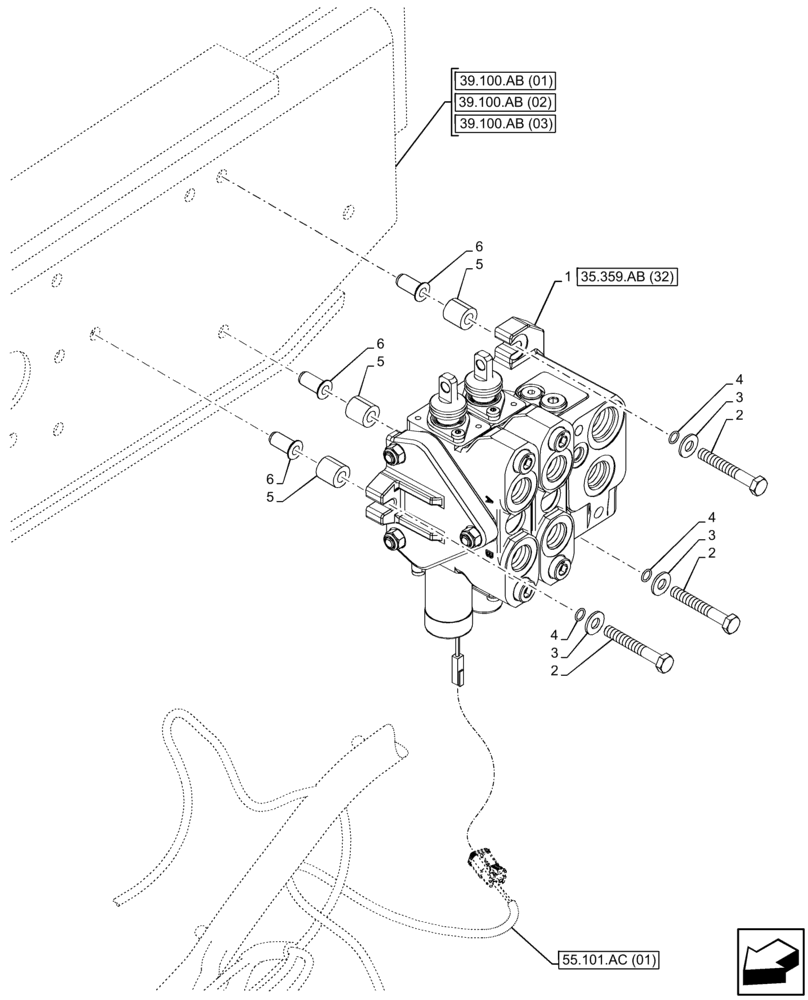

Схема запчастей Case 580SN - (35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
39.100.ab (01)
4
2
35.359.ab (32)
5
39.100.ab (02)
39.100.ab (03)
3
4
3
5
6
2
2
5
3
55.101.ac (01)
6
1
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219975

VALVE

Loader 2 Spool, ASSY

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

4

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

5

87585960

SPACER,11mm ID x 22mm OD x 22mm L

3шт.

6

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 6
