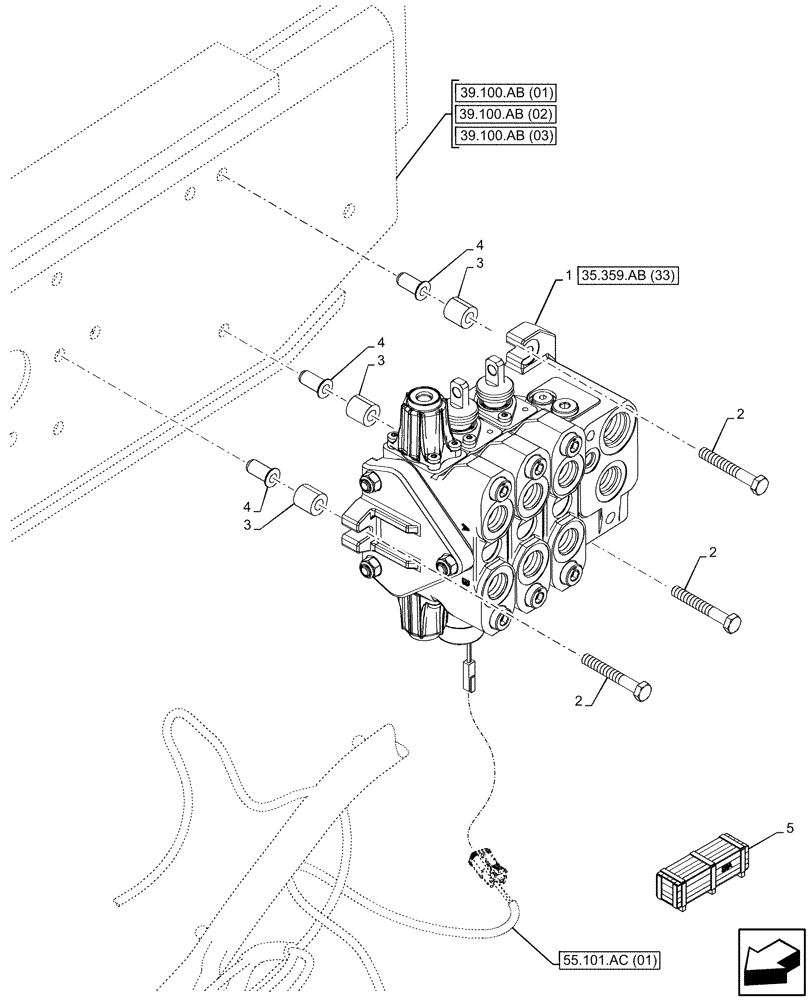

Запчасти Case 580SN (35.359.AB[27]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

1

84219974

VALVE

Loader 3 Spool, ASSY

1шт.

1

84219974R

REMAN-HYD VALVE

Reman Loader 3 Spool, ASSY

1шт.

1

84219974C

CORE-VALVE HYD

Core Return Number

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

3

87585960

SPACER,11mm ID x 22mm OD x 22mm L

3шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

5

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
