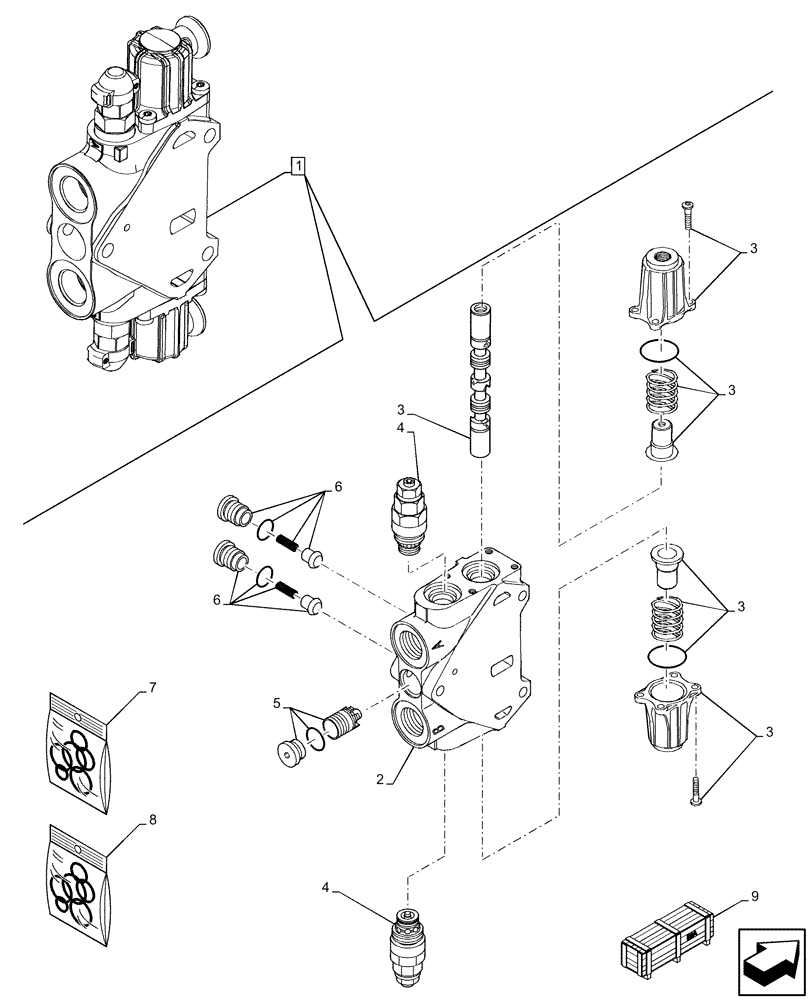

Запчасти Case 580SN (35.359.AB[18]) - BACKHOE CONTROL VALVE, SWING SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84586031

HYD VALVE SECTION

ASSY, Swing, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84586582

VALVE PRESSURE RELIE,205 Bar

205 bar

1шт.

5

85826345

KIT,Pressure Compensator

1шт.

6

85811938

KIT,Check Valve

2шт.

7

85819148

SEAL KIT,Between Control Valve Sections

1шт.

8

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

9

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
