(35.106.AP[03]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL

Запчасти Case 580SN (35.106.AP[03]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL (35) - HYDRAULIC SYSTEMS

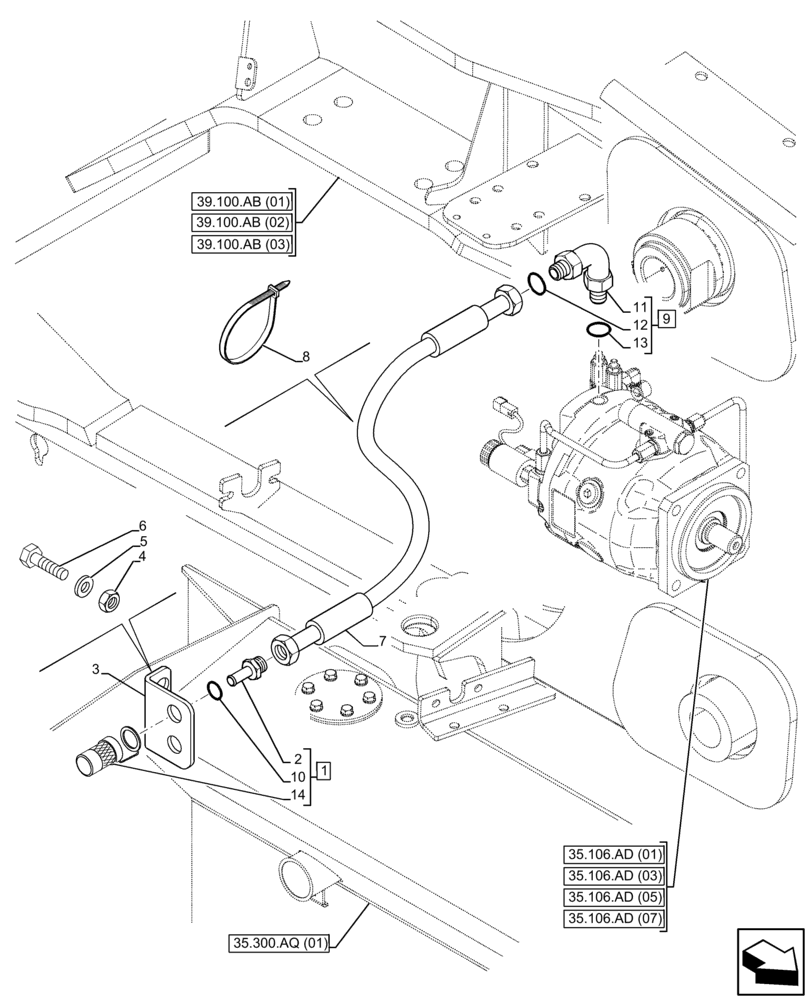

Схема запчастей Case 580SN - (35.106.AP[03]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL (35) - HYDRAULIC SYSTEMS
35.106.ad (05)
14
9
10
39.100.ab (03)
39.100.ab (02)
4
35.106.ad (07)
12
8
35.106.ad (01)
39.100.ab (01)
3
13
35.300.aq (01)
7
2
1
35.106.ad (03)
11
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85817226

QUICK MALE COUPLING,11/16" - 16 OD

ASSY, Incl 2, 10, 14

1шт.

2

NSS

NOT SOLD SEPARAT

Coupler, Diagnostic, Incl in 1

1шт.

3

84477533

BULKHEAD

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

84480362

HOSE,6.3mm ID x 712mm L

712mm L, Remote P Diagnostic Port

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

ASSY, Incl 11 - 13

1шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9968791

PLUG

1шт.
