(35.106.AP[01]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL

Запчасти Case 580SN (35.106.AP[01]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL (35) - HYDRAULIC SYSTEMS

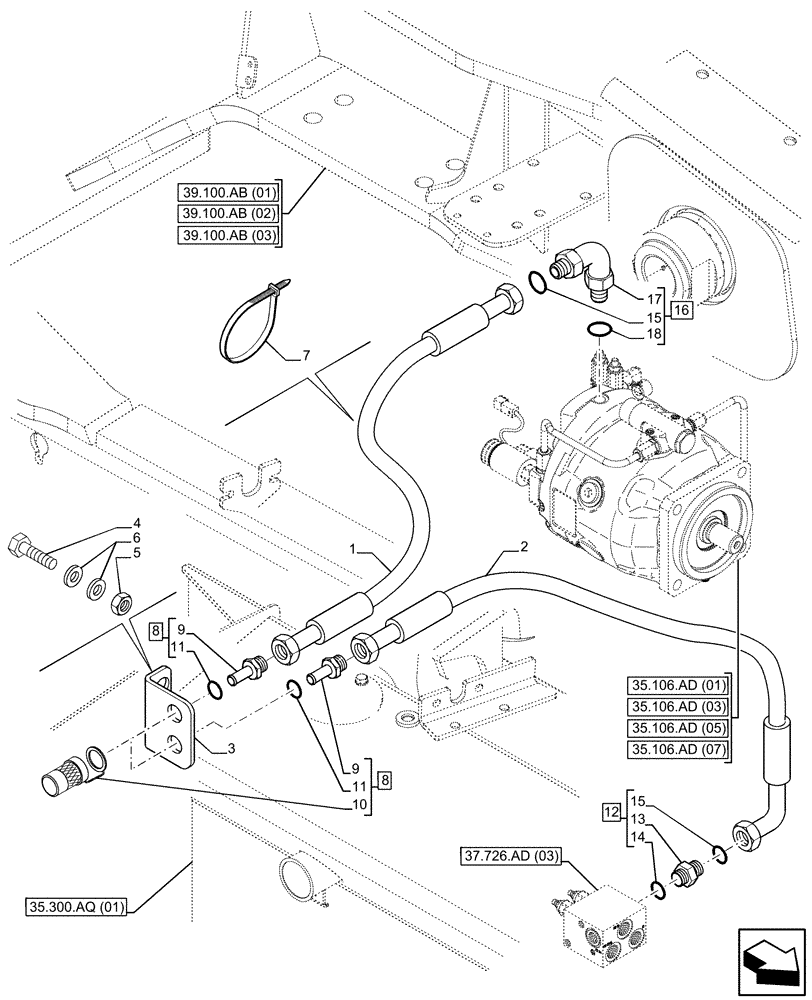

Схема запчастей Case 580SN - (35.106.AP[01]) - DIAGNOSTIC COUPLER, PORT, MECHANICAL (35) - HYDRAULIC SYSTEMS
9
10
35.106.ad (05)
3
8
6
2
8
17
12
16
13
7
35.300.aq (01)
35.106.ad (03)
18
35.106.ad (07)
5
11
15
4
9
1
15
39.100.ab (01)
37.726.ad (03)
14
39.100.ab (03)
35.106.ad (01)
39.100.ab (02)
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84480362

HOSE,6.3mm ID x 712mm L

712mm L, Remote P Diagnostic Port

1шт.

2

84573700

HOSE,6.3mm ID x 1220mm L

1220mm L, Remote LS Diagnostic Port

1шт.

3

84477533

BULKHEAD

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

8

85817226

QUICK MALE COUPLING,11/16" - 16 OD

ASSY, Incl 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

Coupler, Incl in 8

2шт.

10

9968791

PLUG

2шт.

11

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 13 - 15 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

ASSY, Incl 15 (Qty 1), 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 16

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
