(35.106.AO[03]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, HYDRAULIC PUMP

Запчасти Case 580SN (35.106.AO[03]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

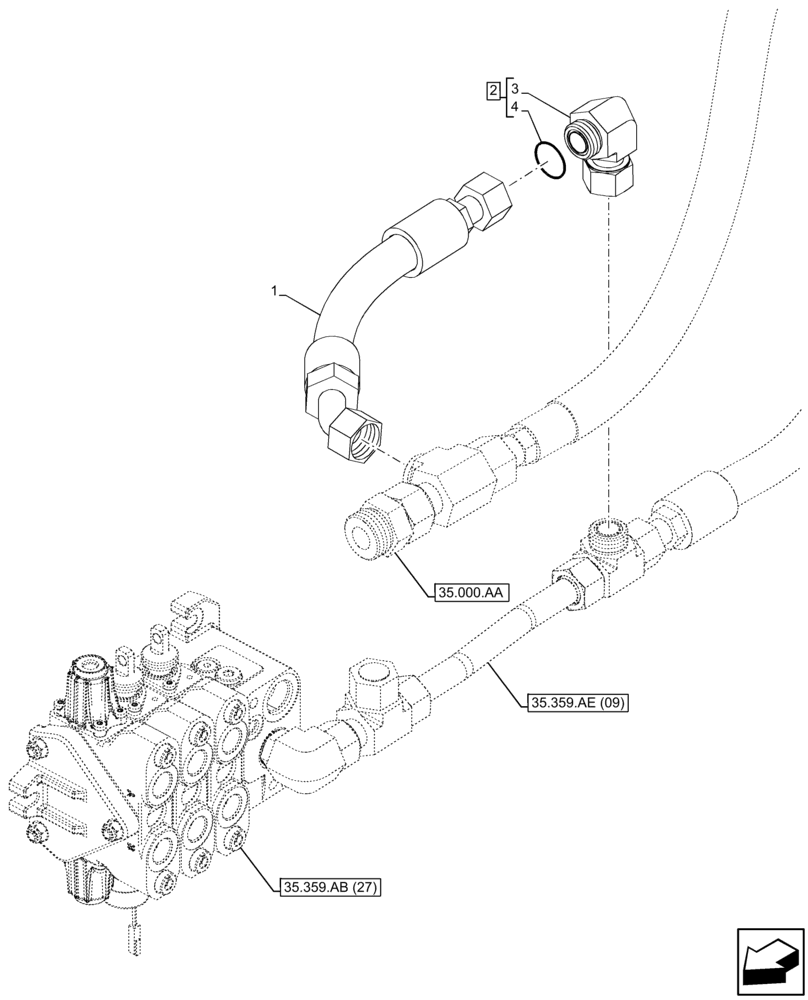

Схема запчастей Case 580SN - (35.106.AO[03]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
1
3
35.359.ae (09)
35.000.aa
35.359.ab (27)
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84523983

HYDRAULIC HOSE,25mm ID x 458mm L

Pressure from Pump

1шт.

2

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
