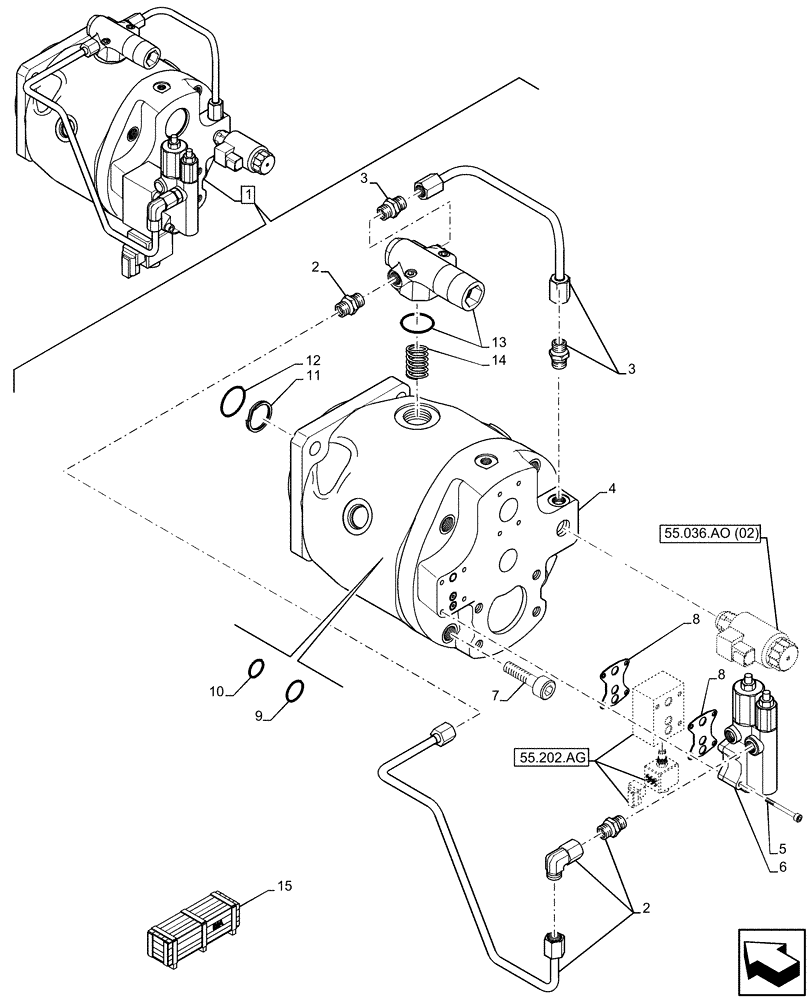

Запчасти Case 580SN (35.106.AD[06]) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/O POWER LIFT, W/ DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84545278

HYDRAULIC PUMP,71 CC

ASSY, Incl 2 - 14

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

See Hydraulic Pump Components also in Figure 55.036.AO (02), 55.202.AG

1шт.

2

47369295

REPAIR KIT

Control Tube, Long, Cold Start

1шт.

3

84499592

SERVICE KIT

Control Tube, Short

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.

6

84312294

CONTROL VALVE

1шт.

7

84312223

HEX SOC SCREW

4шт.

8

84312299

GASKET

2шт.

9

84312210

O-RING

1шт.

10

84312220

O-RING

4шт.

11

84312221

RING

1шт.

12

84312204

SEALING RING

2шт.

13

84311937

CONTROL VALVE

1шт.

14

47822288

SPRING KIT

Torque Control, 71CC

1шт.

15

47825430

CONSTRUCTION DIA

Supplemental Cold Start Aid, Incl 2, 5, 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
