(33.110.AT[02]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE

Запчасти Case 580SN (33.110.AT[02]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE (33) - BRAKES & CONTROLS

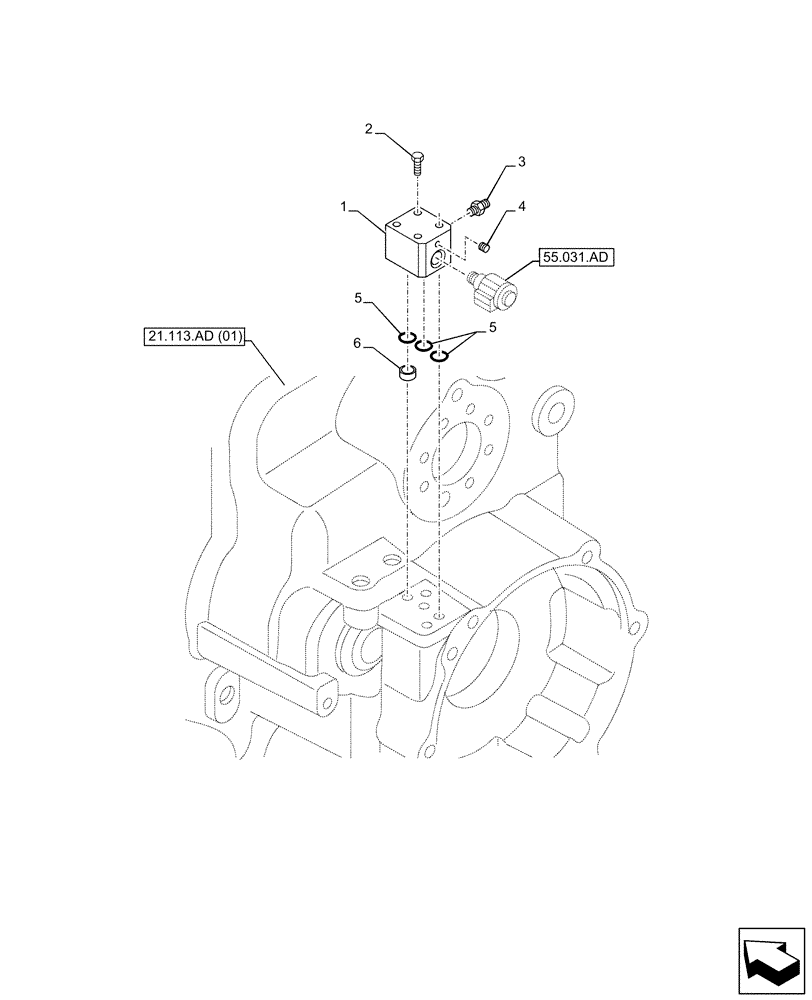

Схема запчастей Case 580SN - (33.110.AT[02]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE (33) - BRAKES & CONTROLS
5
2
6
4
1
21.113.ad (01)
5
55.031.ad
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87701330

CONTROL BLOCK

Hydraulic Transmission

1шт.

2

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

3

139312A1

PLUG,Expansion, 6mm OD

Expansion, 6mm

2шт.

4

933781R1

LUBE NIPPLE,M10 x 1

1шт.

5

277217

SEAL KIT

4шт.

6

87701333

ORIFICE

1шт.
