Запчасти Case 580SN (27.124.AA) - REAR AXLE, SHAFT, BRAKES (27) - REAR AXLE SYSTEM

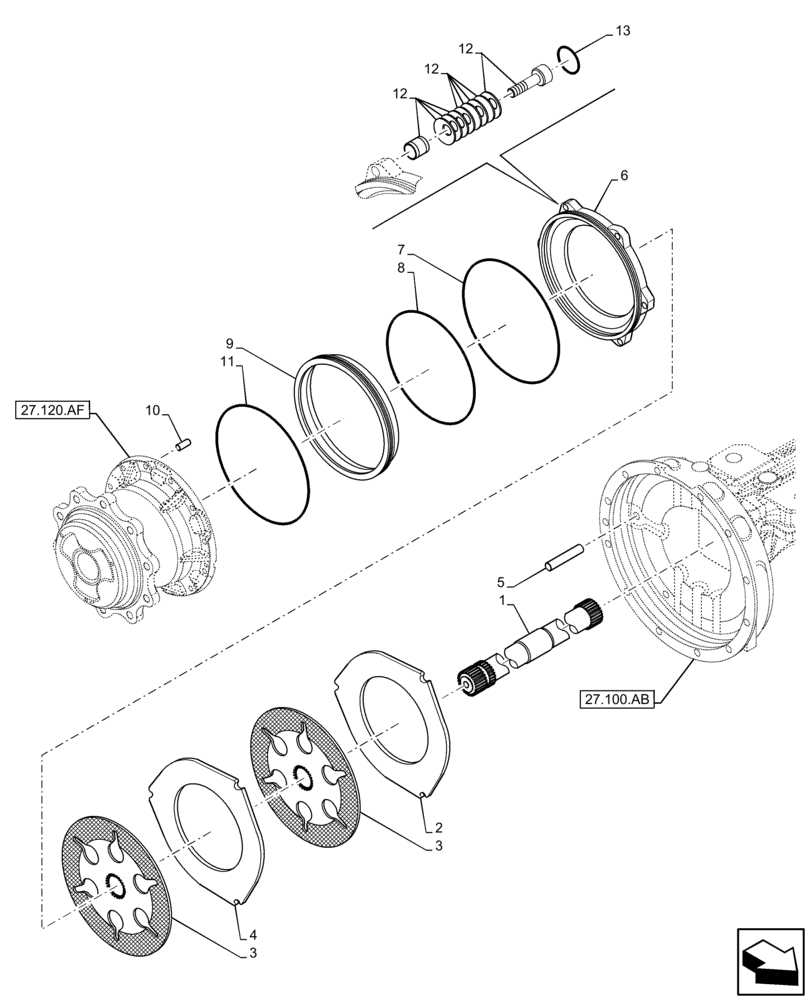

Схема запчастей Case 580SN - (27.124.AA) - REAR AXLE, SHAFT, BRAKES (27) - REAR AXLE SYSTEM
4
12
27.100.ab
9
6
12
1
2
13
3
7
5
11
10
27.120.af
8
12
3

Артикул

Название

Примечание

Количество

1

87708431

SHAFT,734mm / 28.897"

RH (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH (Determine from Seat Facing Radiator)

1шт.

2

87708433

BRAKE PLATE,5mm Thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Piston

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

Piston External

2шт.

9

87708440

PISTON

Brake

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Self Adjust KIT 0.6mm

6шт.

13

87708442

CIRCLIP

6шт.

Выбрано товаров: 14
