Запчасти Case 580SN (27.106.AN[03]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM

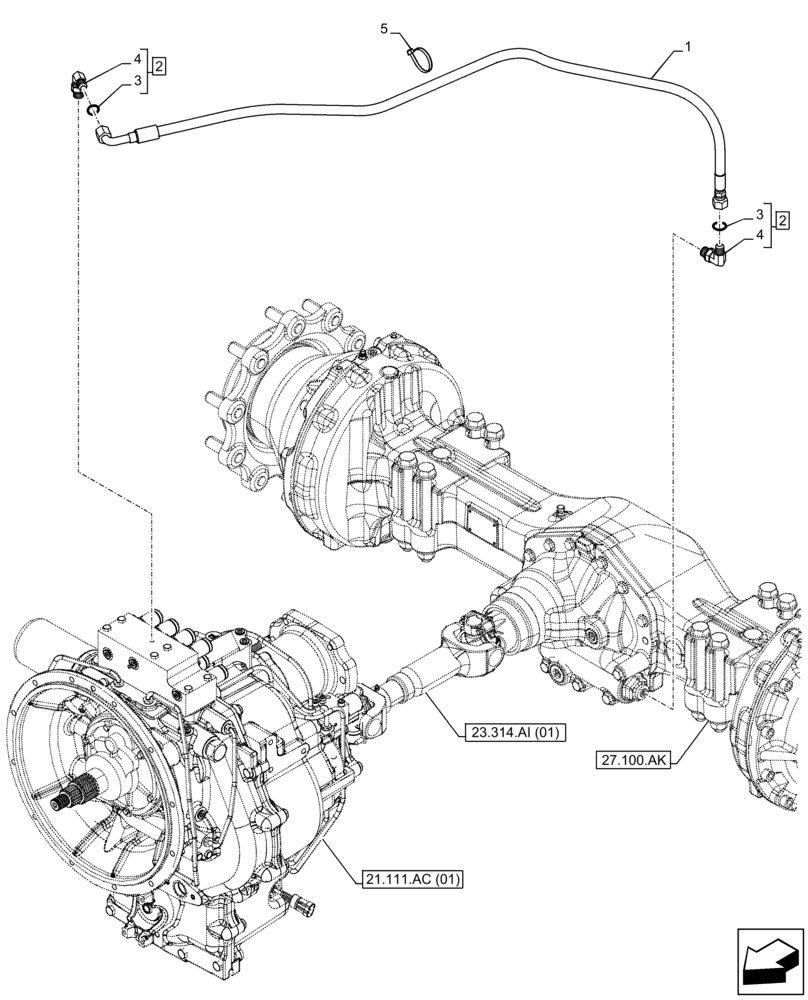

![Схема запчастей Case 580SN - (27.106.AN[03]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM](https://partsell.ru/storage/images/casece/5306436.png)
5
4
21.111.ac (01)
2
3
23.314.ai (01)
27.100.ak
2
4
3
1
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
87431701
HYDRAULIC HOSE,6.4mm ID x 1350mm L
1шт.
2
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
ASSY , Incl 3, 4
2шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
2шт.
4
NSS
NOT SOLD SEPARAT
Incl in 2
2шт.
5
L11541
CABLE TIE,203.2mm L, Nylon
1шт.
Выбрано товаров: 5
