(23.314.AI[01]) - REAR AXLE, HALF SHAFT

Запчасти Case 580SN (23.314.AI[01]) - REAR AXLE, HALF SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

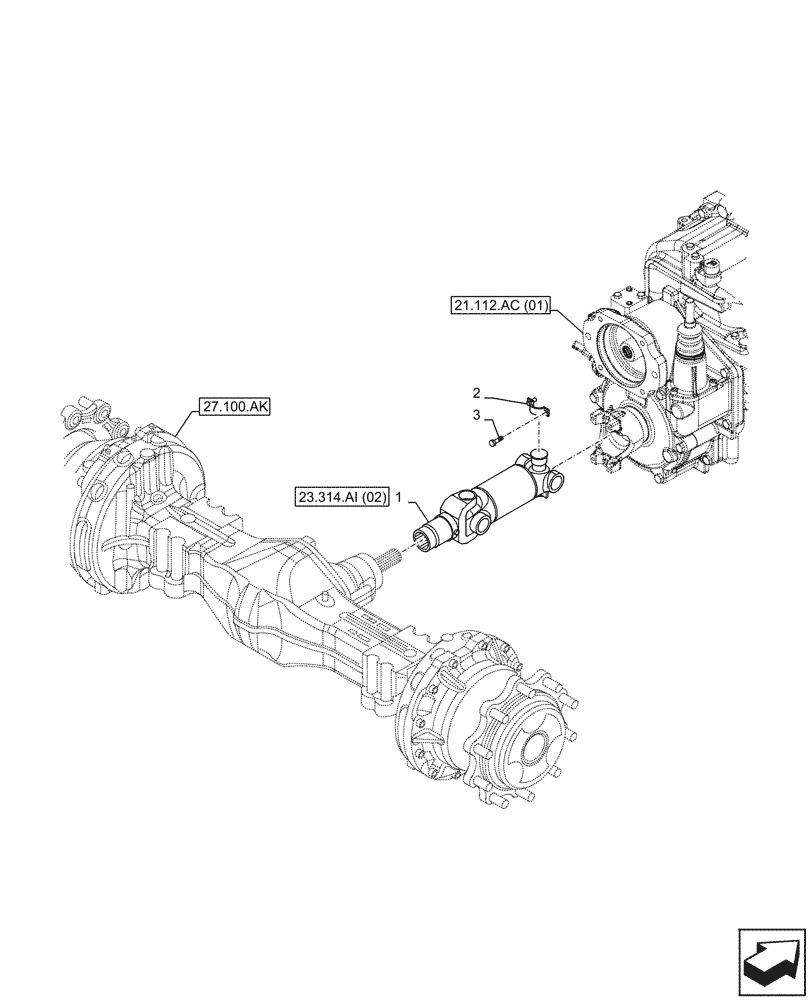

Схема запчастей Case 580SN - (23.314.AI[01]) - REAR AXLE, HALF SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
21.112.ac (01)
1
3
2
23.314.ai (02)
27.100.ak
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87613924

DRIVE SHAFT

Rear

1шт.

2

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

3

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
