Запчасти Case 580SN (90.160.BI[01]) - CAB INTERIOR TRIM, PILLAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

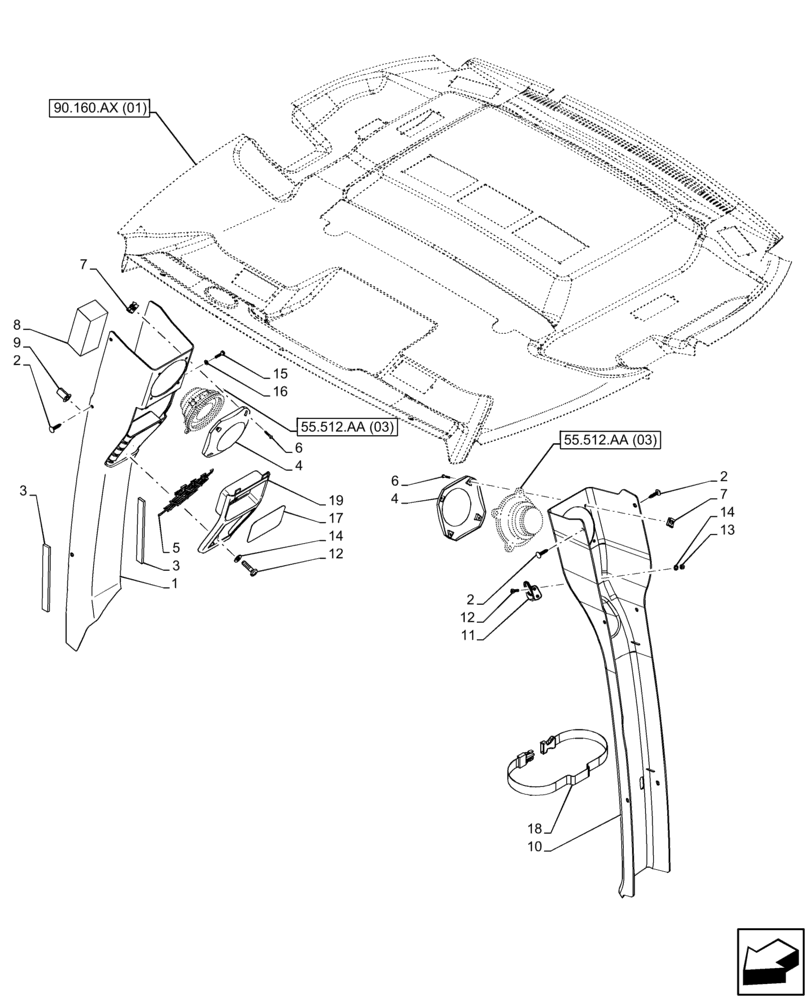

Схема запчастей Case 580SN - (90.160.BI[01]) - CAB INTERIOR TRIM, PILLAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.aa (03)
19
6
8
12
3
7
4
55.512.aa (03)
1
9
13
4
2
5
6
7
10
16
2
90.160.ax (01)
14
18
17
12
3
11
15
14
2

Артикул

Название

Примечание

Количество

1

84224374

COVER ASSY

RH Pillar

1шт.

2

401949A1

FASTENER

10шт.

3

414939A1

SEAL,200mm L

2шт.

4

187281A1

COVER

2шт.

5

84224377

NET

1шт.

6

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

7

177269A1

SPRING NUT,M4.2

8шт.

8

412285A1

STRIP

1шт.

9

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

1шт.

10

84397643

COVER

LH Pillar

1шт.

11

114549A1

COAT HOOK

1шт.

12

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

3шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

14

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

15

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

16

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

17

84224378

DECAL

No Radio

1шт.

18

378227A1

STRAP,500mm L

1шт.

19

84224376

BEZEL

1шт.

Выбрано товаров: 19
