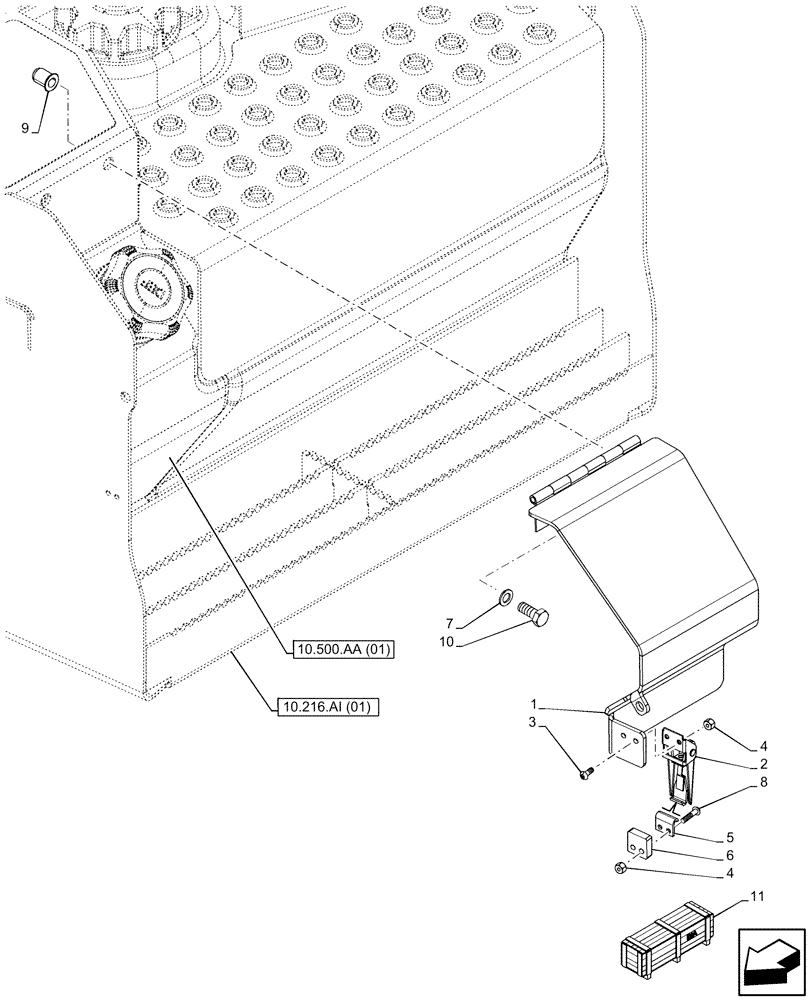

Запчасти Case 580SN (10.500.AA[02]) - VAR - 745167 - DEF TANK, COVERS (10) - ENGINE

1

47534026

COVER

DEF Cap Painted

1шт.

2

87688777

LATCH

Toolbox

1шт.

3

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

4

231-14409

NUT,#10-24, GB

4шт.

5

87688778

CATCH PLATE

1шт.

6

47558840

PLATE

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

8

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

2шт.

9

84471590

INSERT

2шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

47824963

CONSTRUCTION DIA

Locking Covers, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
