Запчасти Case 580SN (90.150.BG) - VAR - 747853, 747854, 747855 - CAB, NARROW, ROOF LIGHT, HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

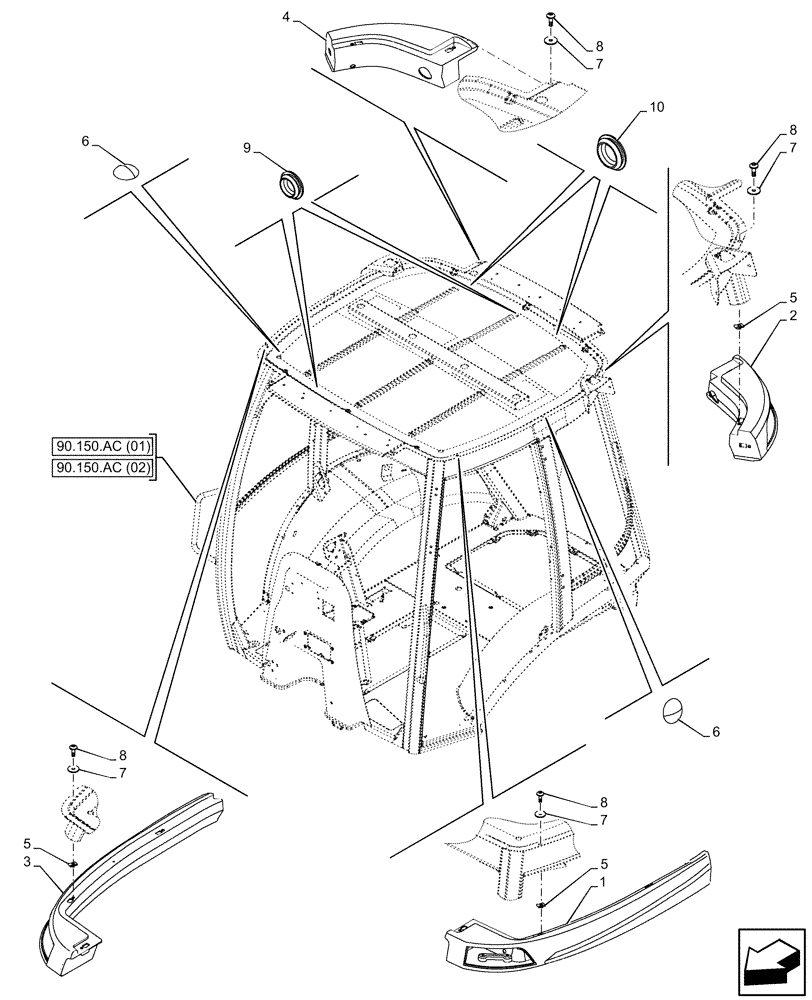

Схема запчастей Case 580SN - (90.150.BG) - VAR - 747853, 747854, 747855 - CAB, NARROW, ROOF LIGHT, HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
9
90.150.ac (02)
7
8
7
8
6
5
3
7
7
8
7
6
1
4
90.150.ac (01)
7
8
2
5
5

Артикул

Название

Примечание

Количество

1

84327783

HOUSING

LH Upper Front

1шт.

2

84327782

HOUSING

LH Upper Rear

1шт.

3

84327784

HOUSING

RH Upper Front

1шт.

4

84327785

HOUSING

RH Upper Rear

1шт.

5

833-40406

NUT,M6, U

14шт.

6

395388A1

PLUG

3шт.

7

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

14шт.

8

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

14шт.

9

14507887

PLUG,25mm ID, 39mm OD

2шт.

10

14508087

PLUG,40mm ID

2шт.

Выбрано товаров: 10
