(90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT - PANEL

Запчасти Case 580SN (90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT - PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

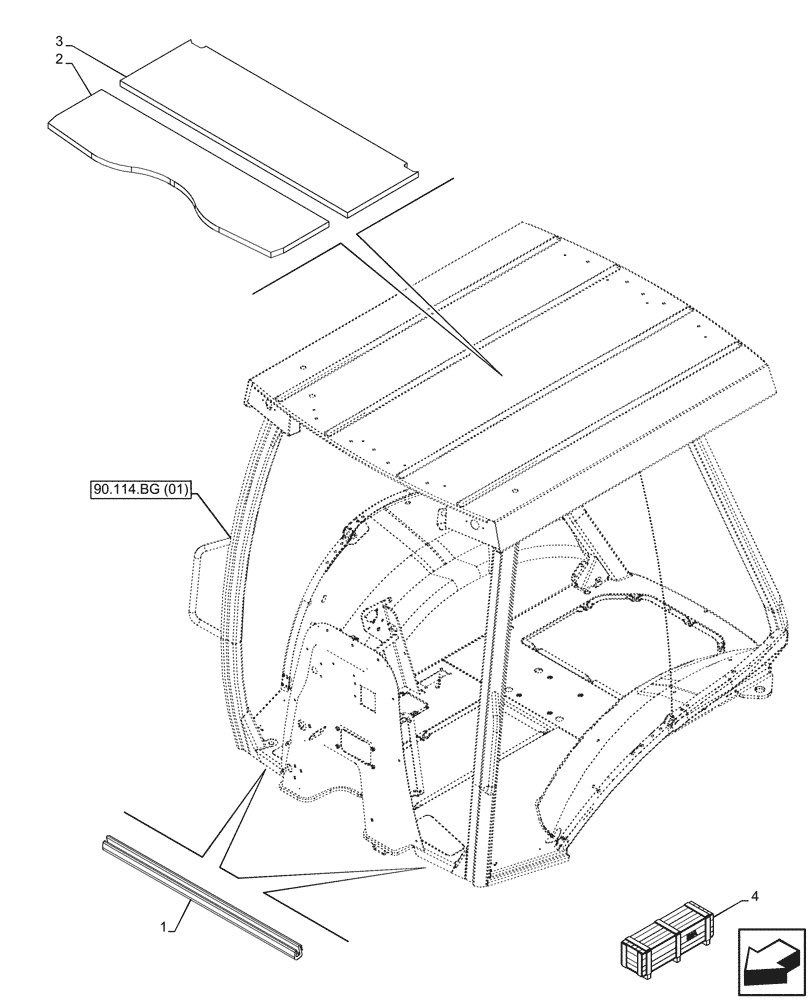

Схема запчастей Case 580SN - (90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT - PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (01)
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395793A1

PROTECTION STRIP

2шт.

2

431583A1

PANEL

Roof Foam - Front

1шт.

3

431584A1

PANEL

Roof Foam - Rear

1шт.

4

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl 1 - 3

1шт.

Valid for 580N EP, 580N, 580SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1 - 3

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
