Запчасти Case 580SN (90.110.AV[02]) - VAR - 423000, 442082 - CANOPY, LEFT PANEL, TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

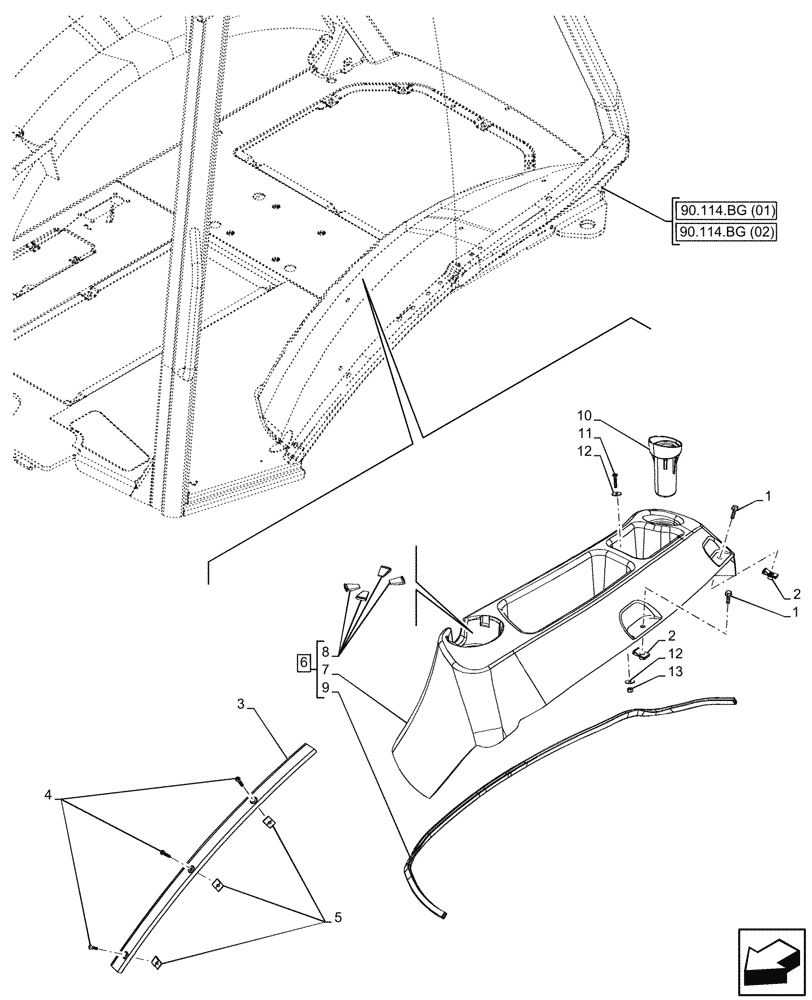

Схема запчастей Case 580SN - (90.110.AV[02]) - VAR - 423000, 442082 - CANOPY, LEFT PANEL, TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (02)
12
1
12
5
11
8
2
9
10
2
3
13
4
1
7
6
90.114.bg (01)

Артикул

Название

Примечание

Количество

1

87310176

BOLT,Round Head, M8 x 20, Cl 8.8

M8 x 20 Cl 8.8

2шт.

2

833-40406

NUT,M6, U

2шт.

3

397025A2

TRIM

LH Fender - Canopy

1шт.

4

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

5

131-869

SPRING NUT,Ret, J, #10-24

3шт.

6

86992243

TRAY

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Tray, Storage, Incl in 6

1шт.

8

86992284

BUMPER,40-50 Durometer

4шт.

9

400077A1

PROTECTION STRIP,1300mm

1шт.

10

378742A3

INSERT

1шт.

11

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

12

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

13

231-14109

LOCK NUT,#10-24, GB

2шт.

Выбрано товаров: 13
