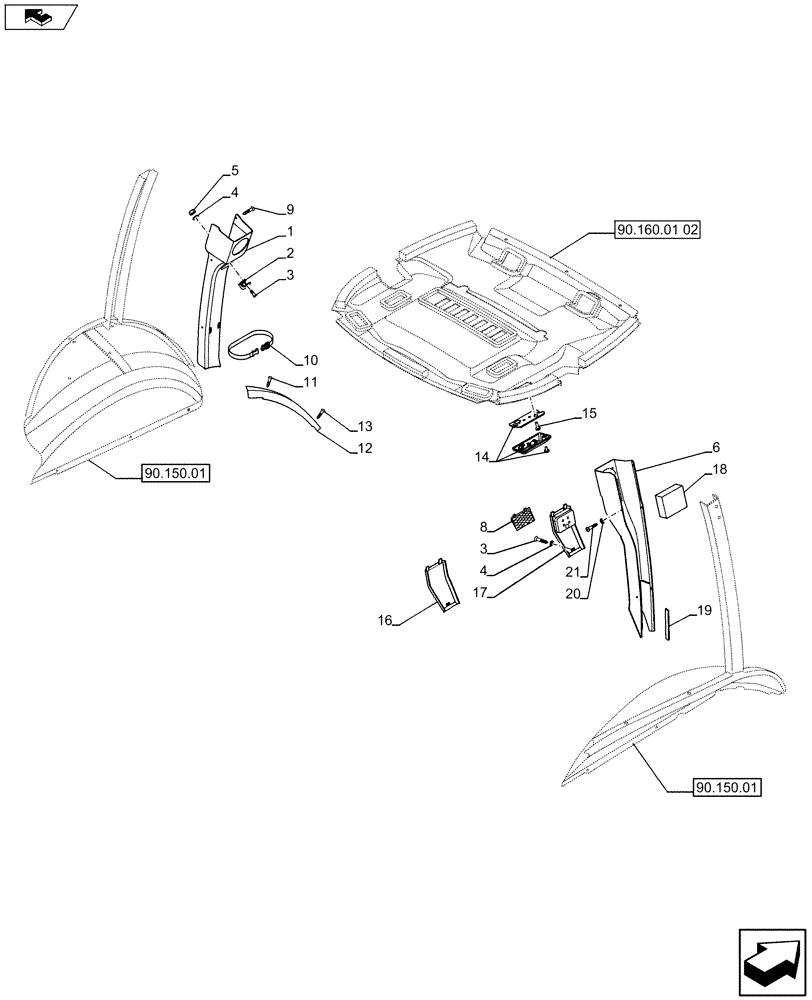

Запчасти Case 580SN (90.160.01[01]) - VAR - 442083 - CAB - DELUXE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84397644

COVER

1шт.

2

114549A1

COAT HOOK

1шт.

3

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

2шт.

4

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

5

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

6

84224375

COVER ASSY

1шт.

7

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

1шт.

8

84224377

NET

1шт.

9

401949A1

FASTENER

10шт.

10

378227A1

STRAP,500mm L

1шт.

11

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

12

397774A3

STRIP

1шт.

13

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

14

380719A2

INTERIOR LIGHT

1шт.

15

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

2шт.

16

84224378

DECAL

1шт.

17

84224376

BEZEL

1шт.

18

412285A1

STRIP

1шт.

19

414939A1

SEAL,200mm L

2шт.

20

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

21

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.
