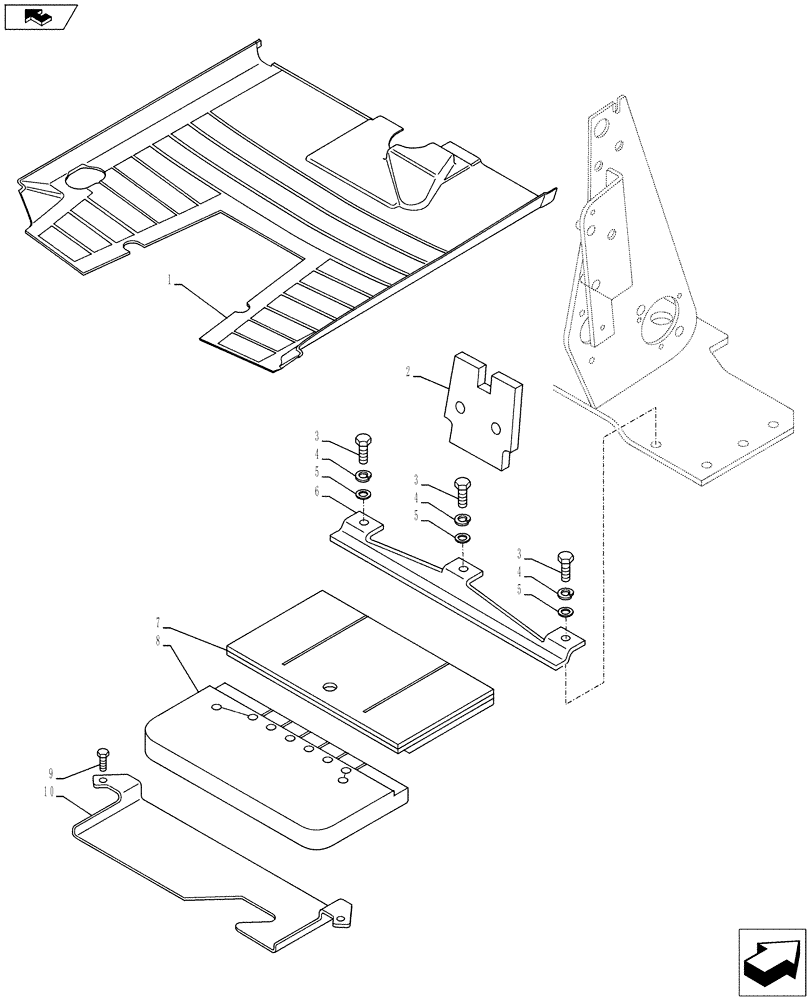

Запчасти Case 580SN (90.110.01) - MAT - FLOOR REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86983325

FLOOR MAT

1шт.

2

397870A3

FOAM INSULATION

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

4

892-11008

LOCK WASHER,8mm ID

3шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

6

84399305

SUPPORT

1шт.

7

400069A1

FOAM

1шт.

8

87439210

FOAM

1шт.

9

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

2шт.

10

397911A1

BRACKET

1шт.
