(88.090.12[02]) - DIA KIT, CANOPY ASM DELUXE WIDE

Запчасти Case 580SN (88.090.12[02]) - DIA KIT, CANOPY ASM DELUXE WIDE (88) - ACCESSORIES

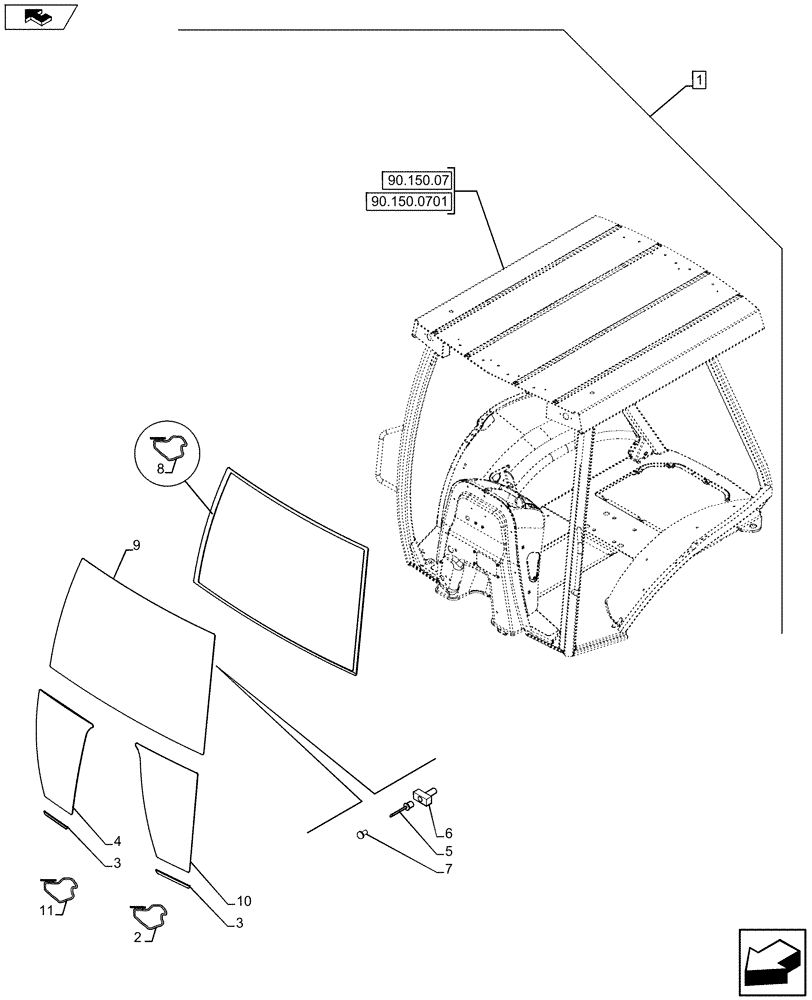

Схема запчастей Case 580SN - (88.090.12[02]) - DIA KIT, CANOPY ASM DELUXE WIDE (88) - ACCESSORIES
9
90.150.07
3
4
home
11
7
6
10
90.150.0701
1
2
3
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84275492

CONSTRUCTION DIA

Canopy Asm Deluxe Wide, Incl 2 - 11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.090.11 [01], 88.090.11 [03] to 88.090.11 [11]

1шт.

2

395795A1

TAPE

1шт.

3

395793A1

PROTECTION STRIP

2шт.

4

84246308

CAB GLASS ASSY

1шт.

5

151-516

RIVET,Pop, 1/8" x .775"

2шт.

6

279482A1

CLAMP

2шт.

7

391827A1

SPACER,11.1mm D

18шт.

8

87495298

ADHESIVE

1шт.

9

84246306

GLASS

1шт.

10

84246307

CAB GLASS ASSY

1шт.

11

349-152

ADHESIVE

1шт.
