Запчасти Case 580SN (88.090.11[04]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES

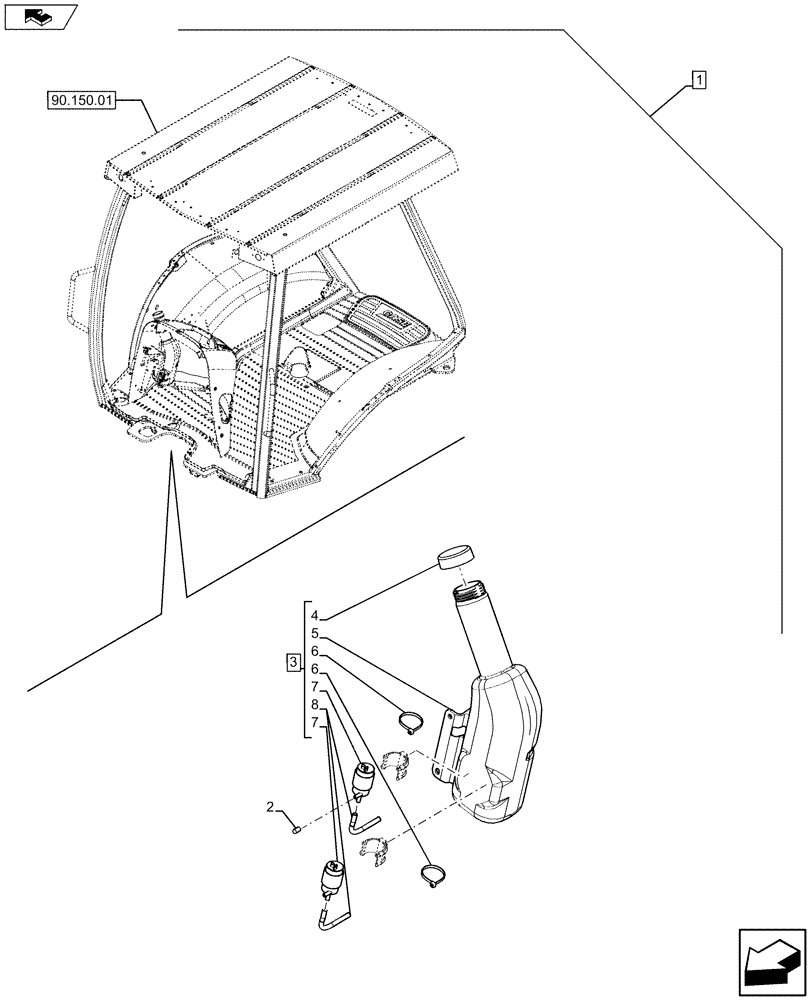

Схема запчастей Case 580SN - (88.090.11[04]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES
2
7
8
home
3
6
90.150.01
7
4
5
6
1

Артикул

Название

Примечание

Количество

1

84410617

KIT

Canopy Conversion Wide - DLX, Incl 2 - 8, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.090.11 [01] to 88.090.11 [03], 88.090.11 [05] to 88.090.11 [11]

1шт.

2

87441758

CAP

1шт.

3

87675209

RESERVOIR, WINDSHIEL

Assy, Incl 4 - 8

1шт.

4

87711985

FILLER CAP

1шт.

5

87675208

RESERVOIR, WINDSHIEL

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

7

86507198

PUMP,Windshield Washer

2шт.

8

87700794

HOSE WASHER,4.76 mm ID x 135.00 mm

2шт.

Выбрано товаров: 9
