(88.090.09[03]) - DIA KIT, DLX CONV - NARROW

Запчасти Case 580SN (88.090.09[03]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES

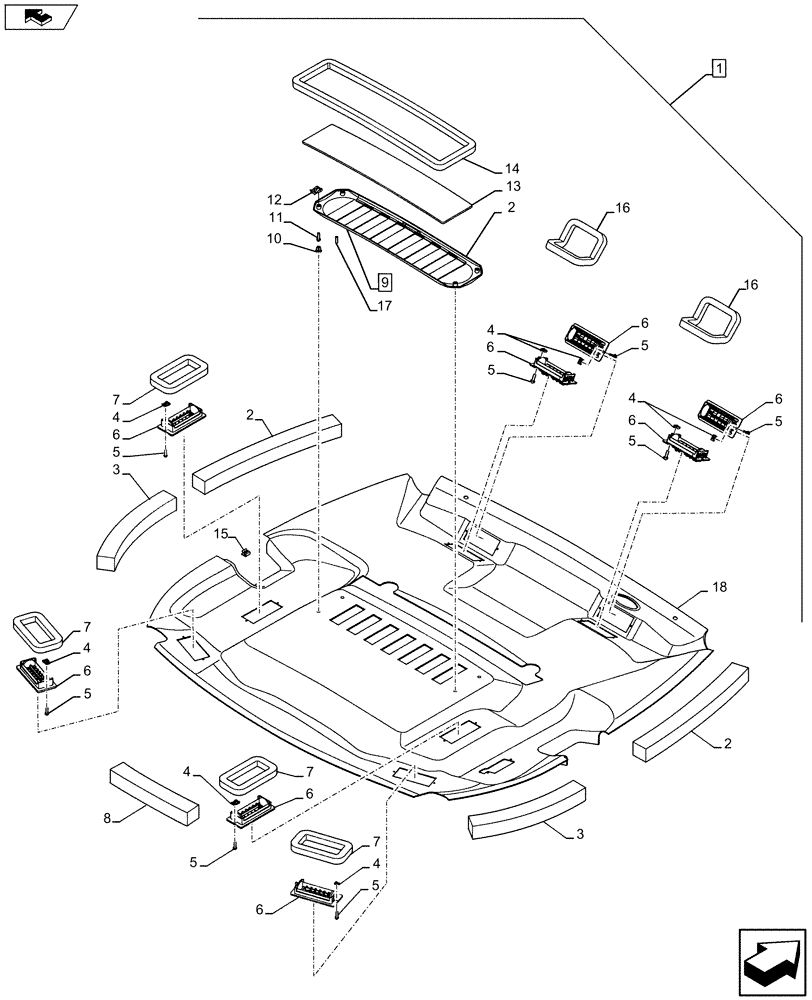

Схема запчастей Case 580SN - (88.090.09[03]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES
6
5
6
5
7
7
2
6
4
2
12
home
4
3
18
10
15
16
6
4
6
7
5
11
6
6
8
17
4
5
5
5
1
5
14
13
16
7
5
9
4
4
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84482541

KIT

DLX CONV - Narrow, Incl 2 - 18, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.090.09 [01] to 88.090.09 [02], 88.090.09 [04]

1шт.

2

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

2шт.

3

379161A1

SEAL,379mm L

1шт.

4

125749A1

SPRING NUT

16шт.

5

140-109

SCREW,Cross Pan Hd, #10 - 24 x 7/8"

16шт.

6

363883A1

LOUVER

8шт.

7

84499076

GASKET,174mm L x 97mm L

4шт.

8

379209A1

SEAL,303mm L

1шт.

9

369450A1

GRILLE

Assy, Incl 17

1шт.

10

409723A1

PLUG

4шт.

11

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

12

177269A1

SPRING NUT,M4.2

4шт.

13

377594A5

FILTER

1шт.

14

381972A1

SEAL,592.5mm L

1шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

16

368813A2

SEAL,168mm L

2шт.

17

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

18

84224382

HEADLINER

1шт.
