(88.090.09[01]) - DIA KIT, DLX CONV - NARROW

Запчасти Case 580SN (88.090.09[01]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES

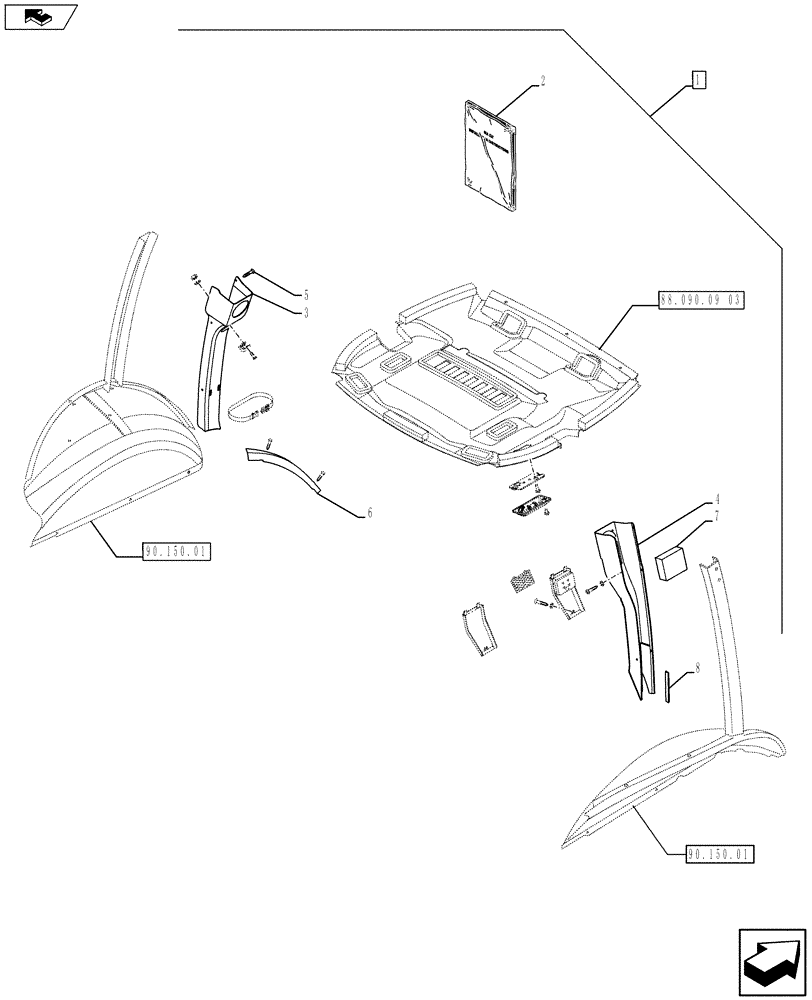

Схема запчастей Case 580SN - (88.090.09[01]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES
90.150.01
1
4
7
home
88.090.09 03
2
8
90.150.01
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84482541

KIT

DLX CONV - Narrow, Incl 2 - 8, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.090.09 [02] to 88.090.09 [04]

1шт.

2

84482560

INSTRUCTION

1шт.

3

84397644

COVER

1шт.

4

84224375

COVER ASSY

1шт.

5

401949A1

FASTENER

10шт.

6

397774A3

STRIP

1шт.

7

412285A1

STRIP

1шт.

8

414939A1

SEAL,200mm L

2шт.

Выбрано товаров: 9
