Запчасти Case 580SN (88.084.17) - DIA KIT, CEMETERY BUCKET - 36IN/939MM (88) - ACCESSORIES

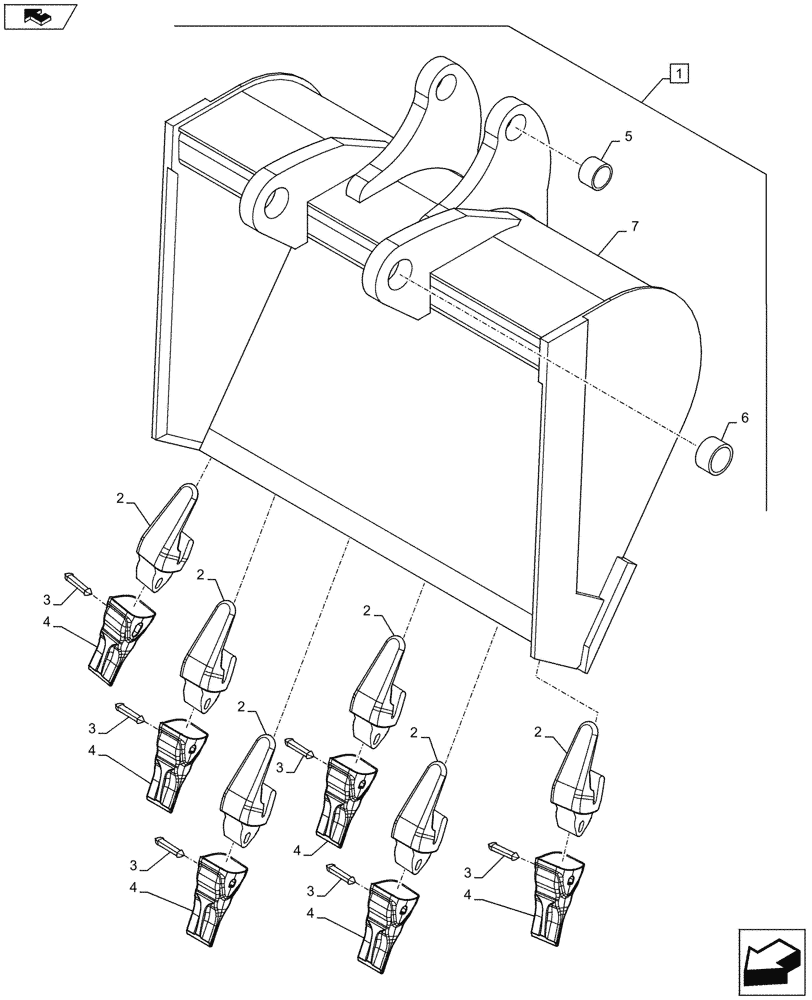

Схема запчастей Case 580SN - (88.084.17) - DIA KIT, CEMETERY BUCKET - 36IN/939MM (88) - ACCESSORIES
7
4
6
4
4
2
3
4
5
4
home
3
2
2
3
2
2
3
1
4
2
3
3

Артикул

Название

Примечание

Количество

1

47872279

BUCKET

Backhoe Bucket, Cemetery, W/6 Teeth (939 mm/36 Wide), Assy, Incl 2 - 7

1шт.

For North America Market

1шт.

2

84318729

BUCKET TOOTH SHANK

6шт.

3

84318739

BUCKET TOOTH KEY

6шт.

4

84318713

BUCKET TOOTH

General Purpose (SF5SYL)

6шт.

5

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

6

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

7

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

Выбрано товаров: 8
