Запчасти Case 580SN (88.084.14[11]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE HAND SWING (88) - ACCESSORIES

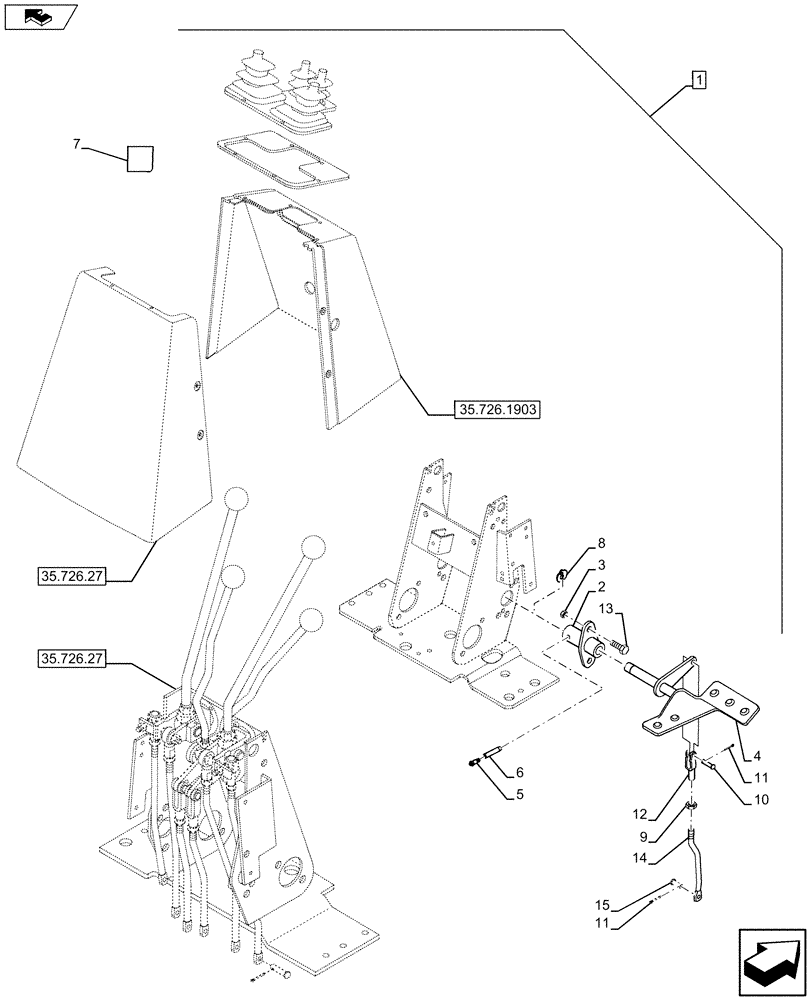

Схема запчастей Case 580SN - (88.084.14[11]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE HAND SWING (88) - ACCESSORIES
12
14
4
1
35.726.1903
9
35.726.27
11
8
11
10
7
13
5
6
2
3
15
35.726.27
home

Артикул

Название

Примечание

Количество

1

84569261

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe Hand Swing, Incl 2 - 15

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [10]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

126918A1

SUPPORT

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

179029A1

PEDAL

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

D150032

TUBE

1шт.

7

D149827

IMPORTANT DECAL

1шт.

8

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

10

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

2шт.

12

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

15

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

Выбрано товаров: 17
