Запчасти Case 580SN (88.084.14[01]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE HAND SWING (88) - ACCESSORIES

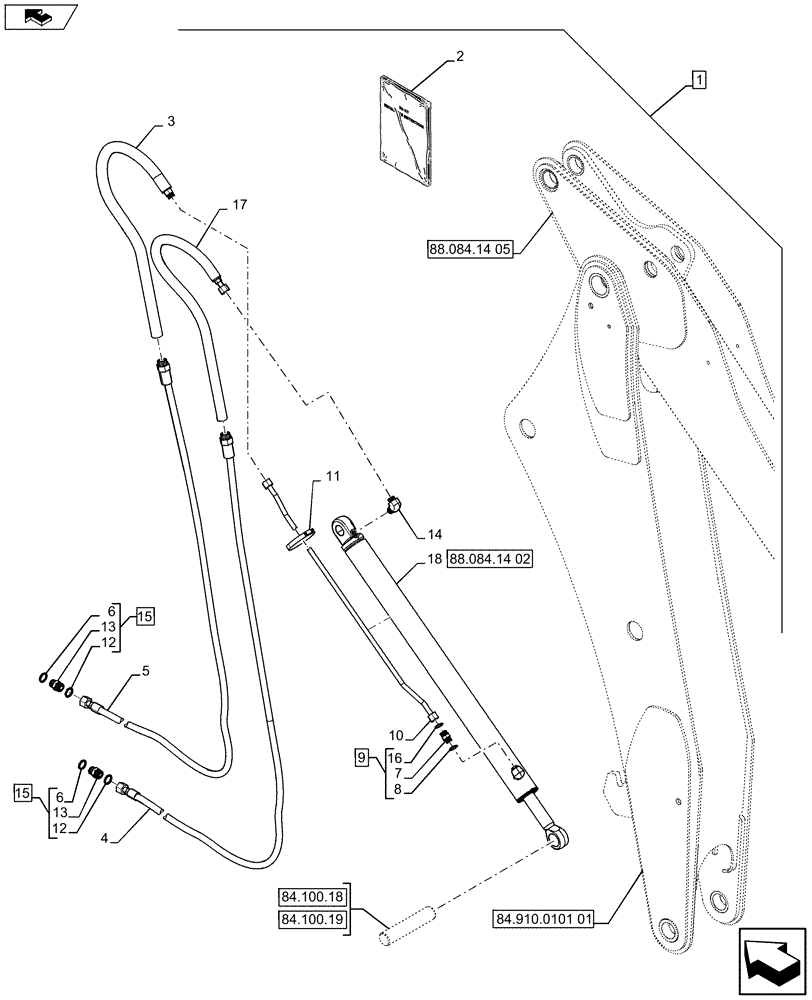

Схема запчастей Case 580SN - (88.084.14[01]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE HAND SWING (88) - ACCESSORIES
5
84.100.19
6
2
7
17
18
6
11
1
12
15
84.910.0101 01
13
13
88.084.14 02
8
12
home
10
88.084.14 05
4
3
9
14
15
16
84.100.18

Артикул

Название

Примечание

Количество

1

84569261

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe Hand Swing, Incl 2 - 18

1шт.

See Ref. 88.084.14 [02] to 88.084.14 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84569262

INSTRUCTION

1шт.

3

84343074

HOSE,12.5mm ID x 945mm L

Ext Hoe Cylinder Rod

1шт.

4

84263639

HOSE ASSY.,16mm ID x 2766mm L

Valve to Ext Hoe Cylinder Head

1шт.

5

84257618

HYDRAULIC HOSE,16mm ID x 2750mm L

Valve to Ext Hoe Cylinder Rod

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 7 - 8, 16

1шт.

10

84295701

HYD TUBE

1шт.

11

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

14

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

15

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 6, 12 - 13

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

84343076

HOSE,12.5mm ID x 958mm L

Ext Hoe Cylinder Head

1шт.

18

84421678

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy

1шт.

Выбрано товаров: 20
