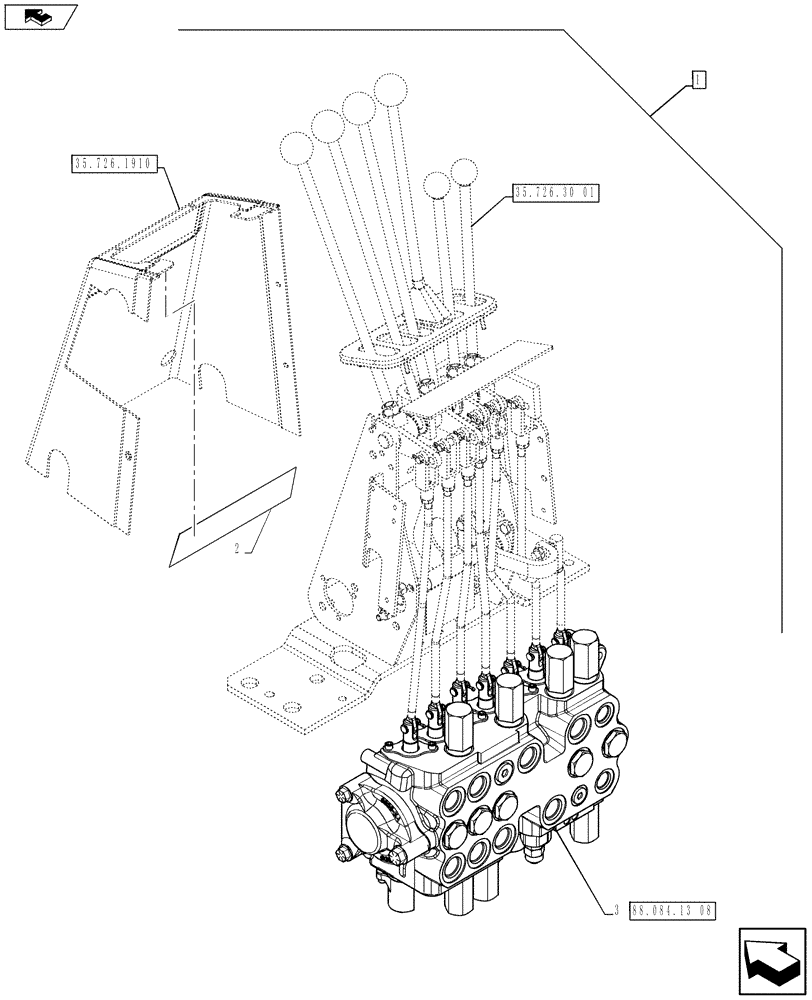

Запчасти Case 580SN (88.084.13[12]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES

1

84568814

CONSTRUCTION DIA

Dipper Standard to Ext Hoe with Foot Swing, Incl 2 - 3

1шт.

See Ref. 88.084.13 [01] to 88.084.13 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

D149825

DECAL

1шт.

3

84273238

VALVE

Assy

1шт.
