Запчасти Case 580SN (88.084.13[11]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES

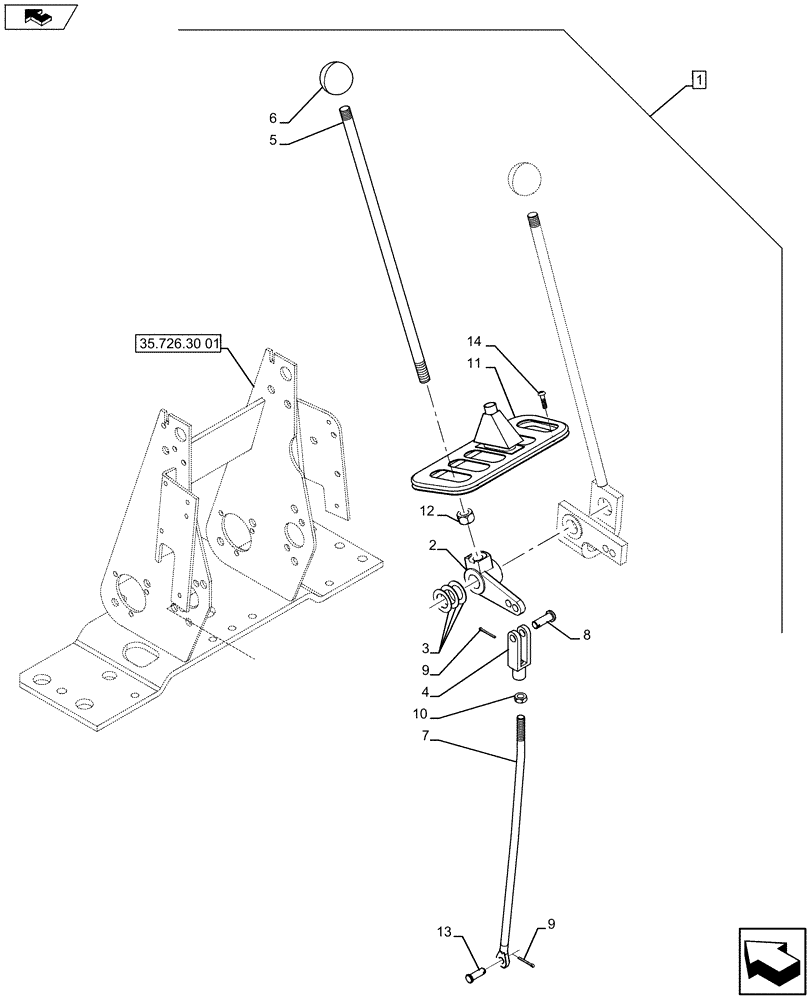

Схема запчастей Case 580SN - (88.084.13[11]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES
2
1
6
8
10
11
35.726.30 01
home
9
5
14
3
9
12
13
4
7

Артикул

Название

Примечание

Количество

1

84568814

CONSTRUCTION DIA

Dipper Standard to Ext Hoe with Foot Swing, Incl 2 - 14

1шт.

See Ref. 88.084.13 [01] to 88.084.13 [10], 88.084.13 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

182006A1

LEVER

1шт.

3

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

3шт.

4

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

5

136263A1

ROD,12.7mm OD x 407mm L

1шт.

6

L54563

KNOB

1шт.

7

87446113

THREADED ROD

1шт.

8

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

2шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

D149867

BOOT

1шт.

12

425-118

NUT,1/2"-20, G5

1шт.

13

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

14

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

Выбрано товаров: 16
